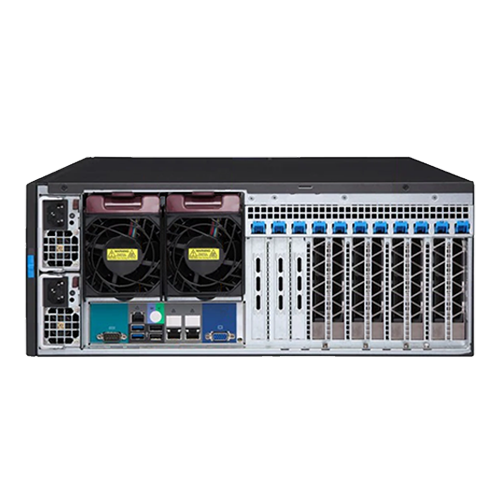

Invento i714 Purley Series

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane DCPMM; 16 DIMM slots
4 PCI-E 3.0 x16 (double-width) slots, 2 PCI-E 3.0 x16 (single-width) slots, 1 PCI-E 3.0 x4 (in x8) slot
8 Hot-swap 3.5" drive bays
2x 10GBase-T LAN ports via Intel X550
4 Heavy duty fans, 4 exhaust fans, and 2 active heatsink with optimal fan speed control
GPU Kit for passive GPU/Coprocessor support
2200W Redundant Power Supplies Titanium Level (96%)

Model	i714
Processor Support	2 X 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic	Intel® C621 chipset
Memory	16x DIMM slots; Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane DCPMM
PCIe Expansion Slot	4 PCI-E 3.0 x16 (double-width) slots 2 PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8) slot
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	8 Hot-swap 3.5" drive bays
Networking	2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port
Network Controllers	Intel® X550 Dual Port 10GBase-T
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports USB: 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A), 4 USB 2.0 ports (2 rear, 2 via headers) Video: 1 VGA port Serial Port / Header: 2 COM ports (1 rear, 1 Header)
System Cooling	4 Heavy duty fans 2 Rear exhaust fans 2 Optional Rear fans (For Passive GPUs)
Other features	CPU: Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator Fans: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
Power Supply	2200W Redundant Power Supplies Titanium Level (96%) 80PLUS
Dimension / Form Factor	4U Rackmountable / Tower Optional Rackmount Kit
