Invento i7312 Series

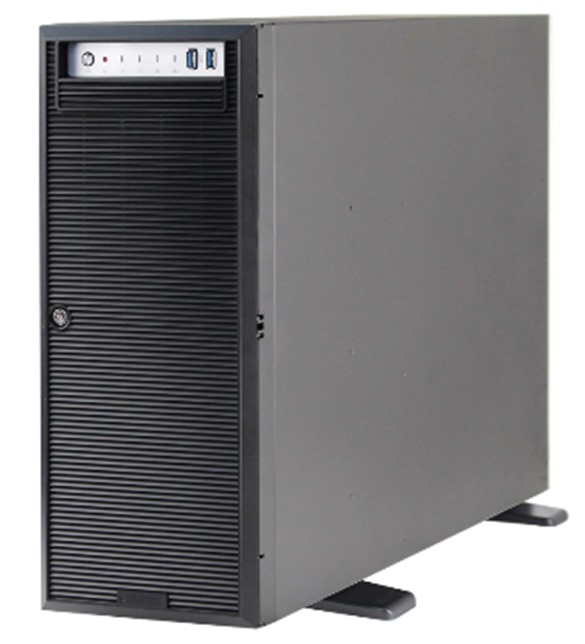

Invento i7312 Series (Rev. 1.0)

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 3 UPI up to 11.2 GT/s
Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz, 8 DIMMs
4 PCIe 4.0 x16
Dual LAN with Intel® i350 Gigabit Ethernet Controller
3 Nos. Cooling fans
4/8 x 3.5" SATA/SAS/SSD Hard drives Bays
500W/650W/800W/1000/1200W/1500W/2000W Multi-output Power Supply Platinum Level Certified
Optional 800W/1200W/1600W/2000W/2200W/2400W Redundant Platinum Titanium Level Certified High-Efficiency Power Supply

Model	i7312 (Rev. 1.0)
Processor Support	2 X 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core Logic	Intel® C621A Chipset
Memory	18 x DIMM slots; Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
PCIe Expansion Slot	PCI-E 4 PCI-E 4.0 x16, M.2: M.2 Interface: 2 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Feature	SATA: Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	4/8 x 3.5" SATA/SAS/SSD Hard drives Bays 1 x External Peripheral bay
Network Controllers	Dual LAN with Intel® i350 Gigabit Ethernet Controller Single Dedicated IPMI Management Ports
Cooling Features	3 Nos. Cooling fans
Graphics	ASPEED AST2600 BMC
Onboard I/O	SATA: 12 SATA3 (6Gbps) port(s) LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) Video Output: 1 VGA port Serial Port: 1 COM Port TPM: 1 TPM Header
Power Supply	500W/650W/800W/1000/1200W/1500W/2000W Multi-output Power Supply Platinum Level Certified Optional 800W/1200W/1600W/2000W/2200W/2400W Redundant Platinum Titanium Level Certified High-Efficiency Power Supply
Dimension / Form Factor	Tower/4U Optional Rackmountable

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16, 2 PCI-E 4.0 NVMe x8 Internal Port(s)
Dual LAN with Intel® i350 Gigabit Ethernet Controller
3 Nos. Cooling fans
4/8 x 3.5" SATA/SAS/SSD Hard drives Bays
650W/800W/1000/1200W Multi-output Power Supply Platinum Level Certified
Optional 800W/1200W/2000W Redundant Platinum Titanium Level Certified High-Efficiency Power Supply

Model	i7312 (Rev. 2.0)
Processor Support	2 X 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core Logic	Intel® C621A Chipset
Memory	18 x DIMM slots; Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
PCIe Expansion Slot	PCI-E 4 PCI-E 4.0 x16, 2 PCI-E 4.0 x8 M.2: M.2 Interface: 1 PCI-E 4.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Feature	SATA: Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	4/8 x 3.5" SATA/SAS/SSD Hard drives Bays 1 x External Peripheral bay
Network Controllers	Dual LAN with Intel® i350 Gigabit Ethernet Controller Single Dedicated IPMI Management Ports
Cooling Features	3 Nos. Cooling fans
Graphics	Aspeed AST2600 Graphics
Onboard I/O	SATA: 14 SATA3 (6Gbps) port(s) LAN: 2 RJ45 Gigabit Ethernet LAN ports USB: 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A), 2 USB 2.0 port(s) (2 via header) Video Output: 2 VGA (1 rear bezel, 1 front panel) port(s) Serial Port: 2 COM Port(s) (1 header; 1 rear) TPM: 1 TPM Header
Power Supply	650W/800W/1000/1200W Multi-output Power Supply Platinum Level Certified Optional 800W/1200W/2000W Redundant Platinum Titanium Level Certified High-Efficiency Power Supply
Dimension / Form Factor	Tower/4U Optional Rackmountable
