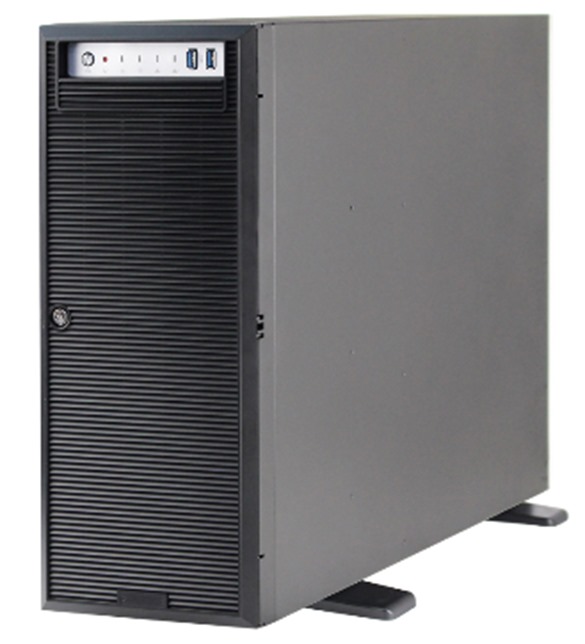

Invento i7313

Invento i7313

i7313

Invento i7313

Salient Features
  • 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A Chipset
  • Up to Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, 16 DIMM Slots
  • 4 PCI-E 4.0 x16, 3 PCI-E 4.0 x8 (in x16 slot)
  • 2 RJ45 10GBase-T ports
  • 4/8 x 3.5" HDD Drive Bays
  • 2/3 Nos. Cooling Fans
  • 500W/650W/850W/1000W/1200W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88%-94% Efficiency) (Optional redundant Power Supply available)

Specification

Model i7313
Processor Support 1 X 3rd Gen Intel® Xeon® Scalable processors, Intel® Xeon® W-3300 Processor Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Core Logic Intel® C621A Chipset
Memory
  • 16 x DIMM slots;
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
PCIe Expansion Slot
  • PCI-E: 7 x PCIe Gen4 x16
  • M.2:
    • M.2 Interface: 2 PCI-E 4.0 x4
    • Form Factor: 2260/2280/22110
RAID Options SATA: Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 1 x External Peripheral Bay &
  • 4/8 x 3.5"/2.5” HDD Drive Bays
Network Controller
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 10GBase-T ports
Onboard I/O
  • Networking: 1 RJ45 Dedicated IPMI LAN port, 2 RJ45 10GBase-T ports
  • USB: 4 USB 3.0 port(s)
  • Video Output: 1 VGA port(s)
  • Serial Port: 1 COM Port(s) (1 rear)
  • TPM: 1 TPM Header
Cooling Feature Cooling Fans: 2-3 Cooling Fans
Power Supply
  • 500W/650W/850W/1000W/1200W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88%-94% Efficiency)
  • Optional Redundant Power Supply available
Dimension / Form Factor
  • 4U/Tower
  • Optional Rackmountable
