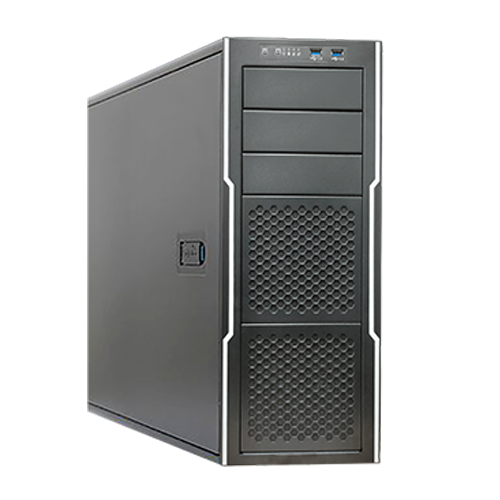

Invento i735 Purley Series

Salient Features
  • Single Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
  • 1 x 10GBase-T and 1 x 1GbE LAN ports
  • 7.1 HD Audio
  • 8 Hot-swap 3.5" SAS3/SATA3 drive bays
  • 1000/1200W Multi-output Power Supply Platinum Level Certified

Specification

Model i735
Processor Support 1 X 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 12 x DIMM slots;
  • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • PCI-E Slots:
    • 4 PCI-E 3.0 x16 slots
    • 2 PCI-E 3.0 x8 (in x16 slot)
  • M.2:
    • M.2 Interface: PCI-E 3.0 x4
    • Form Factor: 2260, 2280, 22110
    • Key: M-Key
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default)
Network Controller
  • Single LAN with Intel® Ethernet Controller I210-AT
  • Single LAN with Aquantia® AQC107 10G Ethernet Controller
  • Single LAN with Realtek RTL8211E PHY (dedicated IPMI)
Graphics
  • Aspeed AST2500 BMC
  • VGA connector is dedicated for IPMI
Onboard I/O
  • LAN: 1 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 10GBase-T ports, 1 RJ45 Dedicated IPMI LAN port
  • USB: 2 USB 2.0 ports (2 via headers, Type A)), 6 USB 3.1 Gen1 ports (4 Rears Type A, 2 via headers), 4 USB 3.1 Gen2 ports (1 Rear Type A + 1 Rear Type C, 1 Type A + 1 Type C)
  • Video Output:- 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: 1 TPM Header
Power Supply 1000/1200W Multi-output Power Supply Platinum Level Certified 80PLUS (94% Efficiency)
Dimension / Form Factor 4U/Tower
