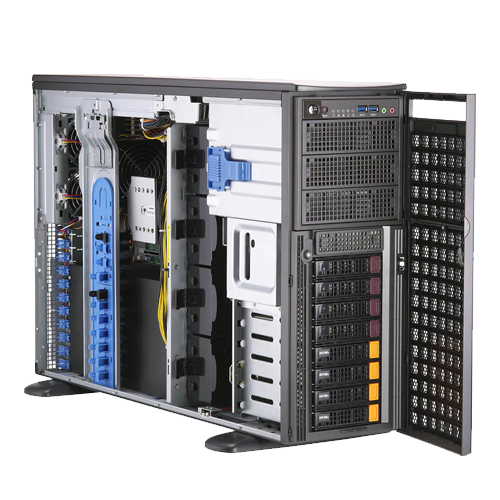

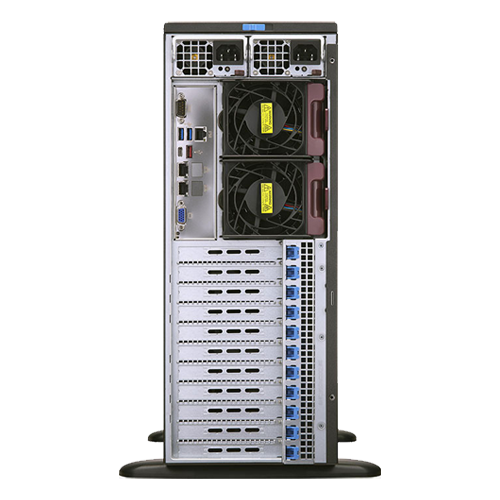

Invento i7404 Series

i7404

Invento i7404 Series

Salient Features
  • AI/Deep Learning Training
  • Scientific Virtualization
  • High Performance Computing
  • Rendering
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • 16 DIMM Slots, Up to 4TB DRAM; Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • 1 PCI-E 4.0 x8 LP, 4 PCI-E 4.0 x16 (double-width) slots, 2 PCI-E 4.0 x16 (single-width) slots
  • Total 8x 3.5" Hot-swap drive bays
  • 2 x 10GbE BaseT port(s)
  • 7.1 HD Audio Ports in Front
  • 4 x Heavy duty fans with Optimal Fan Speed Control
  • 2x 2200W redundant Titanium level power supplies

Specification

Model Invento i7404 Series
Processor Support 2 X 3rd Gen Intel® Xeon® Scalable processors, 3 UPI up to 11.2GT/s, Support CPU TDP 270W
Core Logic Intel® C621A
Memory
  • 16 x DIMM slots;
  • Up to 4TB DRAM;
  • Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  • Intel® Optane™ Persistent Memory 200 series
PCIe Expansion Slot PCI-E:
  • 6 PCI-E 4.0 x16, - 1 PCI-E 4.0 x8 • M.2:
  • M.2 Interface: 2 PCI-E 4.0 x4, RAID 0 & 1
  • Form Factor: 2242/2260/2280/22110
  • Key: M-Key
RAID Options SATA: Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • Hot-Swap: 8x 3.5" hot-swap NVMe/SATA/SAS Support drive bays (4x 2.5" NVMe dedicated)
  • M.2: 2 M.2 NVMe OR 2 M.2 SATA3
Network Controllers
  • Dual LAN with Intel® X550 10GBase-T Ethernet Controller
  • 1 x Dedicated GbE for IPMI
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2600 BMC
Onboard I/O
  • USB: 2 USB 2.0 ports (2 via headers), 6 USB 3.1 Gen1 ports (3 Rears Type A + 1 Rear Type C, 1 via header, 1 via header, 1 Type A), 6 USB 3.2 Gen1 ports (4 rear + 1 via header + 1 Type A))
  • Video: 11 VGA D-Sub Connector port
  • Audio: 7.1 HD Audio Ports (Front)
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: 1 TPM Header
Cooling Feature 4x Removable heavy duty fans with Optimal Fan Speed Control
Power Supply 2 x 2200W Redundant Titanium level power supplies (96% Efficiency) 80PLUS
Dimension / Form Factor
  • 4U Rackmountable / Tower
  • Optional Rackmount Kit
