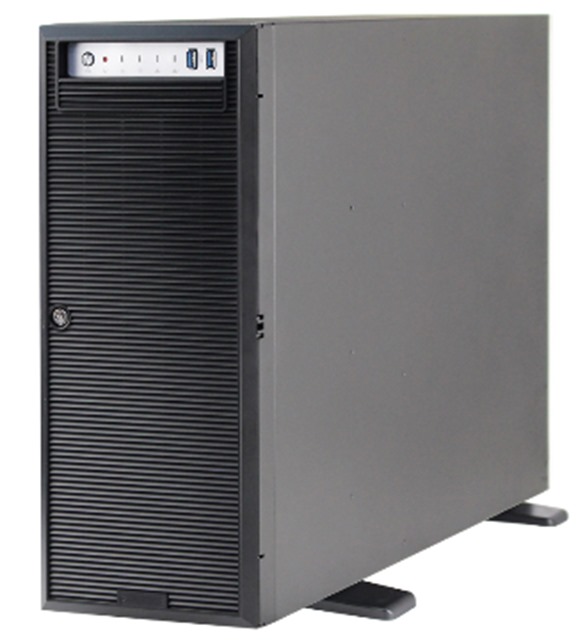

Invento i7407 EPYC Series

• 2 X AMD EPYC 9004 series processors, Dual processor, 5nm technology
• Up to 84-core, 168 threads per processor, cTDP up to 300W

• 24 x DIMM slots;
• Supports upto DDR5 4800MHz

• PCI-E Slots:
  • 4 PCI-E 5.0 x16 slots
• 1 x M.2:
  • M-key
  • PCIe Gen4 x4, from CPU_0
  • Supports 2280/22110 cards

*2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1

• ASPEED AST2600 BMC
• 2D Video Graphic Adapter with PCIe bus interface
• 1920x1200@60Hz 32bpp, DDR4 SDRAM

• 1 x External Peripheral Bay
• 8 x 3.5" hot-swap SAS3/SATA drive bays (at front)

• Dual LAN 10GBase-T Ethernet Controller
• 1 RJ45 Dedicated IPMI LAN port

• Support for Intelligent Platform Management Interface v. 2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2600 BMC

• 4 x USB 3.2 Gen1
• 1 x VGA
• 1 x COM
• 2 x 10G Base-T LAN ports
• 1 x Management LAN Ports
• 1 x ID button with LED
• TPM: TPM 2.0 header

• Operating Temperature: 10°C to 40°C
• Non-operating Temperature: -40°C to 60°C
• Operating Relative Humidity: 8% to 80% (non-condensing)
• Non-operating Relative Humidity: 20% to 95% (non-condensing)

• 4U/Tower
• Optional Rackmountable
