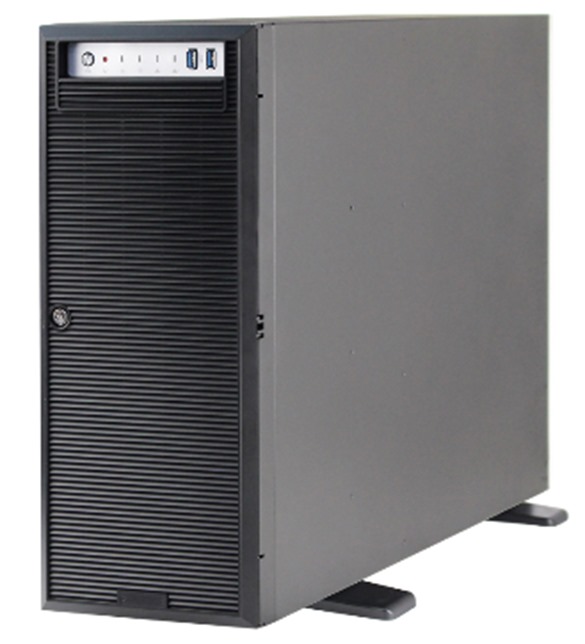

Invento i7409 Series

Invento i7409 Series

i7409

Invento i7409 Series

Salient Features
  • Intel® Socket LGA4677 for Xeon® W-3400/W-3500 and W-2400/W-2500 Series Processors
  • Intel® W790 Chipset
  • Support Up to DDR5-4800MHz, 8 DIMM Slots
  • 2 x 2.5GbE, 1 x IPMI Port
  • 3 x Chassis cooling fans
  • 500W/650W/750W/850W/900W/1200W/1400W/1500W/1600W/2000W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88-94% Efficiency)

Specification

Model i7409
Processor Support
  • 1 x Intel® Xeon® W-3400/W-3500 series and Xeon® W-2400/W-2500 series processors
  • Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core Logic Intel® W790
Memory
  • 8 x DIMM slots;
  • Up to 3DS ECC Registered RDIMM, DDR5-4800MHz ECC Registered Memory*
  • Quad Channel Memory Architecture
PCIe Expansion Slot
  • PCI-E Slots:
    • 4 x PCIe 5.0 x16 slot(s)
    • 3 x PCIe 5.0 x8 slot(s)
  • M.2:
    • 2 x M.2 slot
    • Form Factor: 2280
    • Key: M-Key
RAID Options
  • Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel® VMD)
  • Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Drive Bays
  • 4 x 3.5" Internal HDD Drive Bays &
  • 1 x External Peripheral Drive Bays
Network Controller
  • 2 x Intel® 2.5Gb Ethernet
  • 1 x Dedicated IPMI
Security Features Hardware: Trusted Platform Module (TPM) 2.0
Cooling feature 2/3 x Chassis cooling fans
Onboard I/O
  • USB: 6 x Type-A (USB 3.0)
  • Serial Port / Header: 1 COM Port (1 header)
  • VGA Port
  • TPM: 1 TPM Header
Other Features Chassis intrusion detection (optional)
Power Supply 500W/650W/750W/850W/900W/1200W/1400W/1500W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88-94% Efficiency)
Dimension / Form Factor Tower
