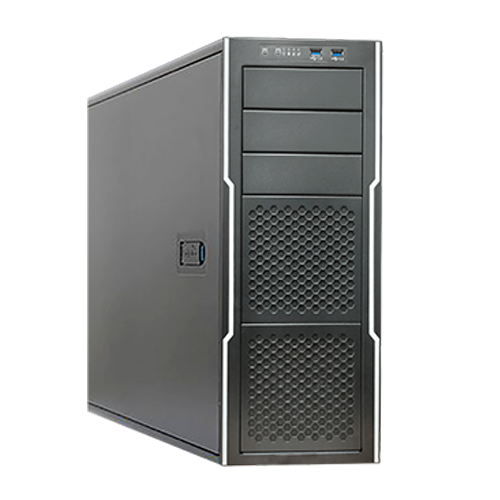

Invento i7423 W-Series

Invento i7423 W-Series

i7423

Invento i7423 W-Series

Salient Features
  • Single Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
  • Memory support Up to 4TB(W-3400)/2TB(W-2400) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
  • Xeon® W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards Xeon® W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
  • Realtek ALC888S 7.1 HD Audio
  • Single 1GbE LAN port and Single 10GbE LAN port
  • IPMI Supported
  • Overclocking Supported (optional)
  • Chassis Intrusion Feature (optional)
  • 500W/650W/750W/850W/900W/1200W/1400W/1600W/2000W/2200W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88-94% Efficiency)

Specification

Model i7423
Processor Support
  • 1 X Single Intel® Xeon® W-3400 series and Xeon® W-2400 series processors, Up to 350W TDP
  • Up to 56 cores
Core Logic Intel W790 Chipset
Memory
  • 16 x DIMM slots
  • Up to 4TB 3DS ECC Registered RDIMM, DDR5-4800MHz
  • Supported Memory modules: 16GB, 32GB, 64GB, 128GB, 256GB
PCIe Expansion Slot
  • PCI-E: 6 PCIe 5.0 x16
  • M.2:
    • M.2 Interface: 4 PCIe 5.0 x4, RAID 0, 1, 5, 10
    • Form Factor: 22110, 2280
    • Key: M-Key
RAID Options SATA: Intel® W790 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 4 x 3.5" Internal HDD Drive Bays &
  • 3 x 5.25" External HDD Drive Bays
    (Optional: HDD bays can be Hot swappable upto 8 Nos. 3.5” Size)
Network Controllers
  • 1GbE LAN port with Intel® Ethernet Controller I210-AT
  • 10GbE LAN with Marvell AQC113C
Graphics ASPEED AST2600 BMC
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) port(s)
  • USB: 4 USB 2 port(s) (2 via header; 2 rear Type A), 2 USB 3.2 Gen2x2 port(s) (1 rear type C; 1 via header), 4 USB 3.2 Gen2x1 port(s) (4 rear Type A), 2 USB 3.2 Gen1 port(s) (2 via header)
  • Video Output: 1 VGA port(s) for IPMI only
  • Serial Port: 1 COM Port(s) (1 rear)
  • TPM: 1 TPM Header
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Cooling Feature 2/3 Internal Cooling fan(s)
Power Supply 500W/ 650W/ 750W/ 850W/ 900W/ 1200W/ 1400W/ 1600W/ 2000W/ 2200W Bronze/Gold/Platinum Level Certified High-Efficiency Power Supply (88-94% Efficiency)
Dimension / Form Factor
  • 4U/Tower
  • Optional Rackmountable
