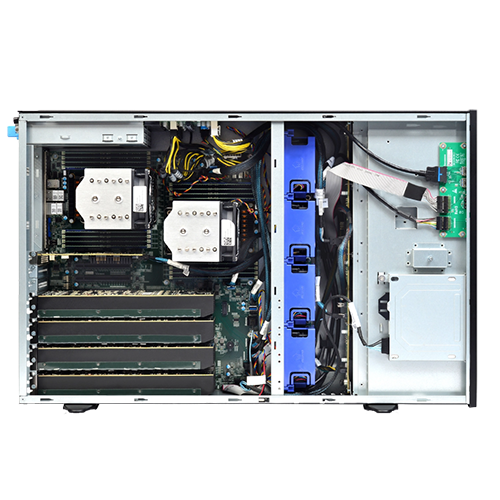

Invento i7440

i7440

Invento i7440

Key Applications
  • Al/Deep Learning Training, Cloud Gaming, Design & Visualization,
  • Diagnostic Imaging, VDI, Media/Video Streaming, Animation and Modeling,
  • 3D Rendering Virtualization
Salient Features
  • Dual Intel® Xeon® 5th/4th Gen. Scalable processors, supporting up to 385W
  • 16 x DDR5 memory slots, 1DPC, up to 5600MHz; Supports RDIMM/3DS RDIMM
  • supports up to 12 x 3.5" hard drives
  • Supports 2 x M.2 (2280/22110, PCIe 4.0x4)
  • Supports up to 7 x standard PCIe expansion slots

Specification

Model i7440
Processor Support
  • Support Dual socket 5th/4th Gen. Intel® Xeon® Scalable processors
  • Maximum power 385W
System Memory
  • 16 x DDR5 DIMMs, 1DPC, up to 5600MHz
  • Supports for RDIMM, 3DS RDIMM, and up to 4TB of memory
Drive Bays
  • Supports 12 x 3.5" hard drives with optional SAS/SATA/NVMe
  • Supports 2 x M.2 (2280/22110, PCIe 4.0x4)
Expansion Slots 7 x standard PCIe 5.0 expansion slots:
  • 4 x PCIe 5.0 x16 double-width slots
  • 2 x PCIe 5.0 x16 single-width slots
  • 1 x PCIe 5.0 x8 single-width slot
GPU Up to 4 x double-width, FHFL GPUs can be supported
Storage controller
  • Integrated 6Gb/s SATA controller;
  • Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card
On-Board Devices Intel C741 Chipset
System Cooling
  • Standard with 4 x system fans (8038,14000 RPM)
  • Optional 4 x rear fans (8038,14000 RPM)
Input/Output
  • Front: 1 x VGA, 2 x USB 3.0
  • Rear: 1 x VGA, 4 x USB 3.0, 1 x RJ45 management network port, 1 x COM, 2 x 1Gb RJ45 data network ports
Security Supports TPM security module, chassis intrusion detection when opening the chassis cover
Management
  • Integrated BMC management chip AST2600, supporting functions such as IPMI2.0, Redfish, SOL, KVM, virtual media, etc
  • Provide 1 x 1Gbps RJ45 dedicated management port
CD drive Optional supports for built-in optical drive
Grounding Rack style support for tool free installation of rails
Security Security panel
PC Health Monitoring
  • Working temperature: 5°C -35° C (without direct sunlight)
  • Storage temperature: -40°C-65 °C
Power Supply
  • 2 x power modules, supports 1+1 Redundancy, and supports hot swapping
  • Optional 220V AC/240V DC input
  • Optional 1600W/2000W/2400W/2700W high-efficiency Platinum / Titanium power supply
Operating Environment
  • Working relative humidity: 8% to 90% (non-condensing)
  • Storage relative humidity: 5% to 95% (non-condensing)
Dimension / Form Factor

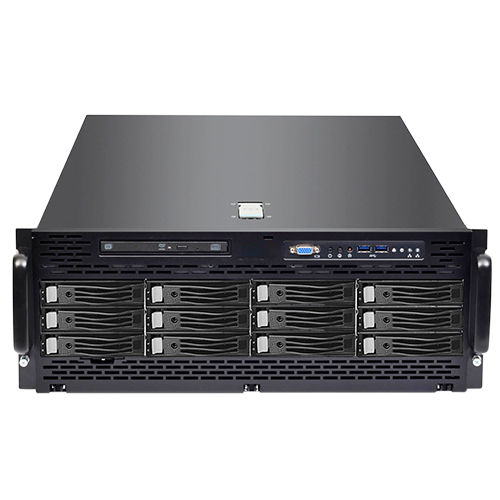

  • 4U Tower type/ Rack mountable using optional Rack Mounting kit
  • Enclosure: 175mm (H) x 437mm (W) x 683mm (D) (Rack mounted form)
  • Enclosure: 175mm (W) x 437mm (H) x 683mm (D) (Tower form)
Chassis 4U Tower/Rack Chassis
*BIOS need to be upgraded
