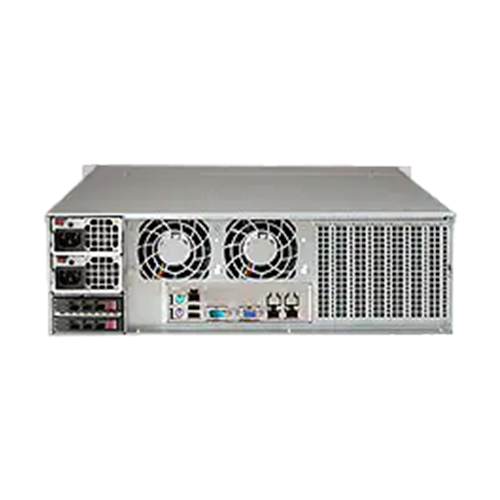

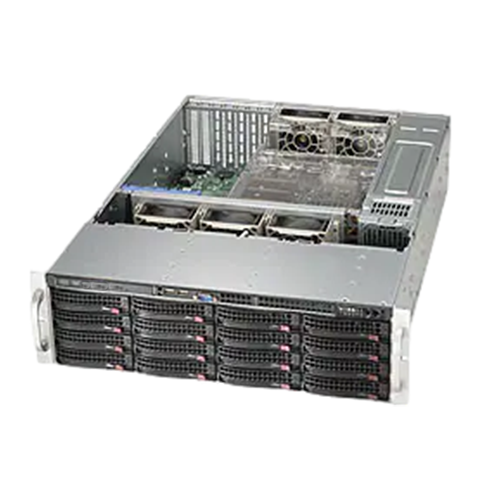

Invento i811 Purley Series

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 165W
Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only); 8 DIMM slots
2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
2 GbE LAN ports
16 x 3.5" hot-swap SAS/SATA drive bay with SES2, optional 2 x 2.5" hot-swap drive bay
3 hot-swap redundant PWM cooling fan(s)
800/1000W Redundant Titanium Single Output Power Supply (96%)

Model	i811
Processor Support	1 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors., Single Socket P (LGA 3647) supported, CPU TDP support 165W
Core Logic	Intel® C621 chipset
Memory	8 x DIMM slots; Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
PCIe Expansion Slot	2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8)
RAID Options	SATA: Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays	Hot-swap: 6 x 3.5" hot-swap SAS/SATA drive bay with SES2 Optional: 2 x 2.5" hot-swap drive bay
Networking	2 RJ45 Gigabit Ethernet LAN ports
Cooling Features	3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Onboard I/O	SATA: 8 SATA3 (6Gbps) port USB: 8 USB 2.0 ports (2 rear + 6 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video: 1 VGA port Serial Port / Header: 2 COM Ports (1 rear, 1 header) TPM: TPM Header
Power Supply	800/1000W Redundant Titanium Single Output Power Supply (96% Efficiency) 80PLUS
Dimension / Form Factor	3U Rackmount
