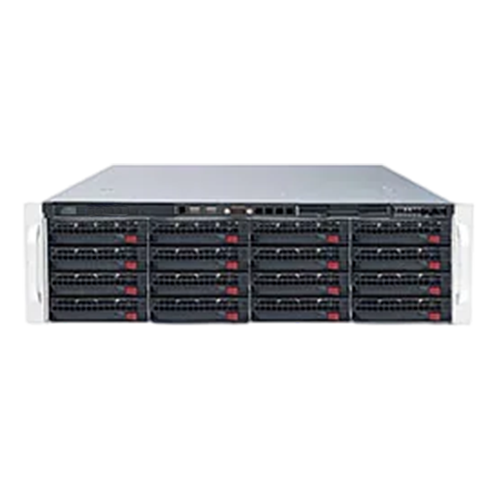

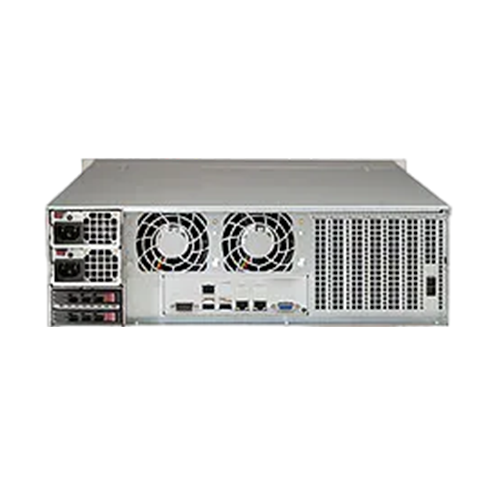

Invento i816 Purley Series

i816

Invento i816 Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
  • Broadcom 3108 SAS3 AOC
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
  • 16 Hot-swap 3.5" SAS3/SATA3 direct attached drive bay
  • 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
  • 1200W Redundant Power Supplies Titanium Level (96%)

Specification

Model i816
Processor Support 2 X Intel® Xeon® Scalable Proc essors, 3 UPI up to 10.4GT/s
Core Logic Intel® C624 chipset
Memory
  • 16x DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 3 PCI-E 3.0 x16,
  • 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
RAID Options
  • SAS: SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID; RAID 0, 1, 5, 6, 10, 50, 60
  • SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays
  • Hot-swap: 16 Hot-swap 3.5" SAS3/SATA3 drive bays
  • Optional: 2 Optional Onboard NVMe M.2
Networking
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Cooling Features
  • 3 Hot-swap 8cm redundant PWM cooling fans
  • 2 Hot-swap 8cm rear exhaust PWM fans
  • Redundant cooling
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • USB: 4 USB 3.0 ports (rear) 1 Type A
  • VGA: 1 VGA port
  • Serial Port / Header: 1 Fast UART 16550 port / 1 Header
Power Supply 1200W Redundant Power Supplies Titanium Level (96%) 80PLUS
Dimension / Form Factor 3U Rackmount
