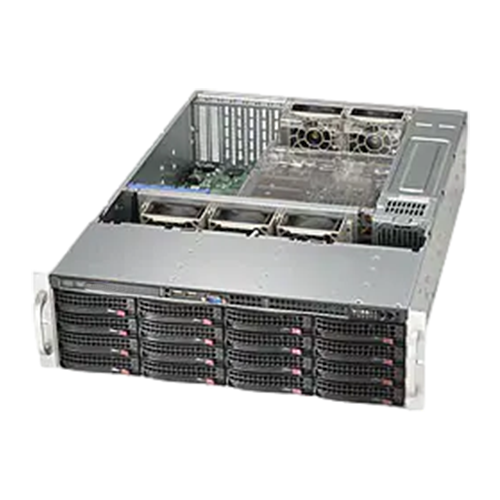

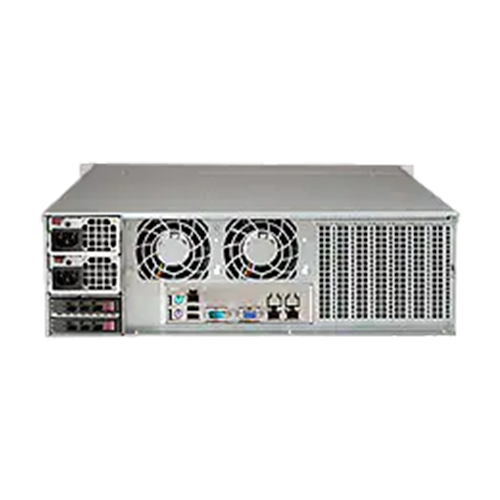

Invento i819e Series

i819e

Invento i819e Series

Salient Features
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series,Intel® Celeron® and Intel® Pentium®
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
  • 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 16 x 3.5" hot-swap SAS/SATA drive bays
  • Dual GbE LAN with Intel® i210-AT
  • IPMI: ASPEED AST2400 BMC
  • 3 x 80mm Hot-swap PWM Fans
  • 920W Redundant Platinum Super Quiet power supply

Specification

Model i819e
Processor Support 1 X Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium
Core Logic Intel® C232 Chipset
Memory
  • 4x DIMM slots;
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz
PCIe Expansion Slot
  • 1 PCI-E 3.0 x8 (in x16)
  • 1 PCI-E 3.0 x8
  • 1 PCI-E 3.0 x4 (in x8)
RAID Options SATA: Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays 16 x 3.5" hot-swap SAS/SATA drive bay
Network Controller Dual LAN with Intel® Ethernet Controller I210-AT
Cooling Features
  • 3 x 80mm Hot-swap PWM Fans
  • 2 x 80mm rear hot-swap exhaust PWM fan(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Onboard I/O
  • USB: 6 USB 2.0 ports (2 rear + 4 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 1 COM Port (1 rear)
  • TPM: TPM Header
Power Supply 920W Redundant Platinum Super Quiet power supply (94% Efficiency)
Dimension / Form Factor 3U Rackmount
