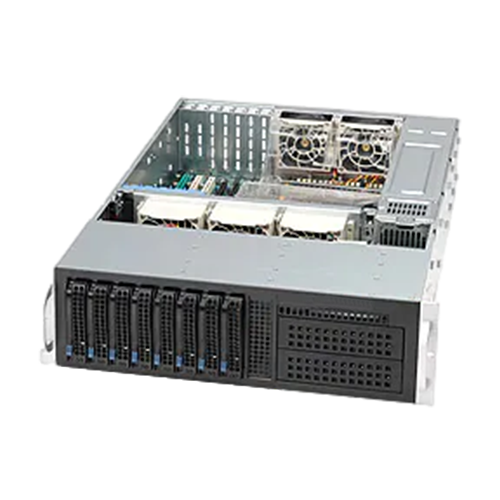

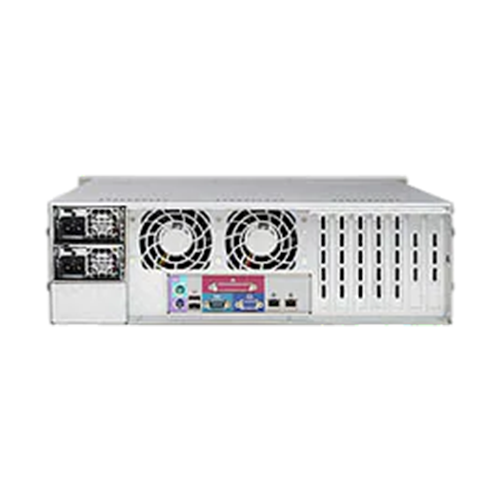

Invento i8208 Series

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; in 16 DIMM slots
4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 2 PCI-E 3.0 NVMe x4 Internal Port(s)
Dual LAN with 10GBase-T with Intel® X722 + X557
8 x 3.5" Hot-swap SAS3/SATA drive bays
Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy
800W Redundant High-efficiency Titanium Level Power Supplies (96% Efficiency)

Model	i8208
Processor Support	2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic	Intel® C622 Chipset
Memory	16 x DIMM slots; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz OR 2TB DCPMM, DDR4-2666MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Expansion Slot	PCI-E Slots 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x86 M.2 M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key
RAID Options	SATA: Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	8 x 3.5" hot-swap SAS/SATA drive bay Space to support 2x 5.25" Drive Bays & 1x Slim DVD
Network Controller	Dual LAN with 10GBase-T with Intel® X722 + X557 1 x RJ45 Dedicated IPMI LAN port
Cooling Features	2 x 80mm rear hot-swap exhaust PWM fan(s) 3 x 80mm Hot-swap PWM Fans
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Onboard I/O	USB: 2 USB 2.0 ports (2 rear), 2 USB 3.2 Gen1 ports (2 rear) Video: 1 VGA port(s) Serial Port / Header: 2 COM Ports (1 rear, 1 header) TPM: 1 TPM Header
Power Supply	800W Redundant High-efficiency Titanium Level Power Supplies (96% Efficiency)
Dimension / Form Factor	3U Rackmount
