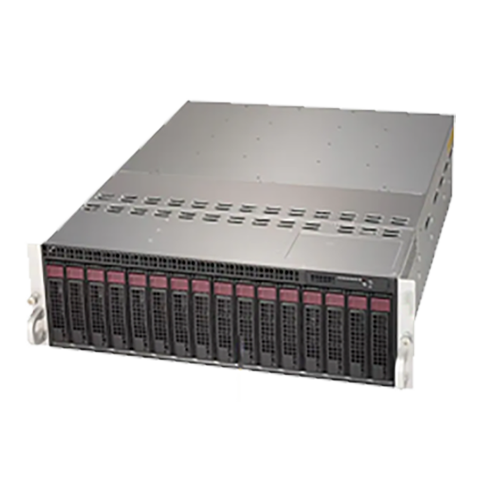

Invento i8308

Invento i8308

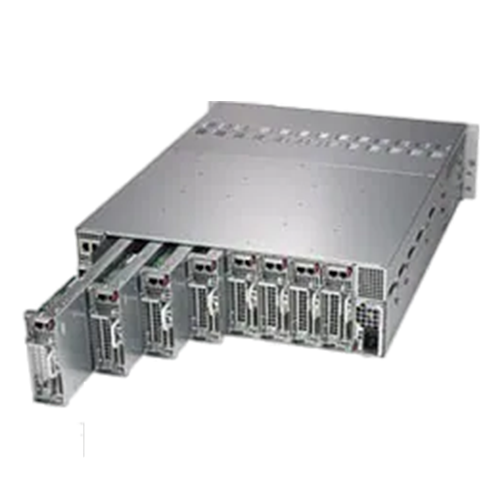

Total 8 Nos. Nodes/Blades Available

Per Node Specifications
  • Single Socket P (LGA 3647) supports 2nd Gen Intel® Xeon® Scalable processor (Cascade Lake/Skylake)
  • 2 x 3.5" SATA3 by default; 2x 2.5" hybrid SATA3/NVMe w/ Optional kits
  • 4 DIMM Slots
  • 2 x 1GbE LAN ports via Intel i350
  • 1 PCI-E 3.0 x16 (low-profile), 1 Micro-LP and 2 M.2
  • 2 USB 2.0, 1 VGA, 1 COM port (with KVM dongle)
  • 4 x 8cm hot-swap cooling fans with fan speed control (per system)
  • 2200W Redundant Power Supplies Titanium Level Certified (Per system)
  • Key Applications: Big Data Analytics, Cloud and Virtualization needs, Web Hosting, VM, Social Networking, CDN, Business Hosting

Specification

Model i8308
Processor (per Node)
  • CPU:
    • Single Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡
    • Support CPU TDP 165W*
  • Cores: Up to 28 Cores
System Memory (per Node)
  • Memory Capacity:
    • 4 DIMM slots
    • Up to 1TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
  • Memory Type Supported:
    • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Network Devices (per Node) Micro-LP NIC:
  • Intel® i350 GbE LAN controller
  • Dual RJ-45 connectors
On-Board Devices (per Node)
  • Chipset: Intel® C621 chipset
  • SATA: SATA3 (6Gbps) via C621 controller
  • IPMI:
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM over LAN support
    • ASPEED AST2500 BMC
  • Graphics: ASPEED AST2500 Graphics (BMC with Graphic controller)
Input / Output (per Node)
  • SATA: 2 SATA3 (6Gbps) ports
  • LAN: 2 RJ45 Gigabit Ethernet LAN ports
  • KVM:
    • 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)
    • 1 TPM Header
Rear Window (each node) Switch: Power / UID
Expansion Slots (per Node)
  • PCI-Express:
    • 1 PCI-E 3.0 x16 (Low-profile) slot
    • 1 Micro-LP PCI-E 3.0 x8 slot
  • M.2:
    • M.2 Interface: 2 SATA/PCI-E 3.0 x4
    • M.2 Form Factor: 2280
    • M.2 Key: M-Key
Drive Bays (per Node) Internal:
  • 2 x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total
  • Enterprise SATA HDD only recommended
Chassis Form Factor: 3U
Dimensions
  • Height: 5.21" (132 mm)
  • Width: 17.26" (438 mm)
  • Depth: 23.2" (589 mm)
System Cooling Fans: 4 Nos. x Hot-swap 8cm cooling fans fan speed control
Power Supply 2200W Redundant Power Supplies Titanium Level Certified (96% Efficiency)
