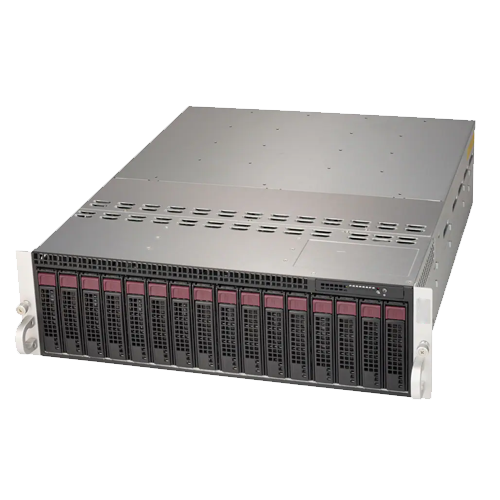

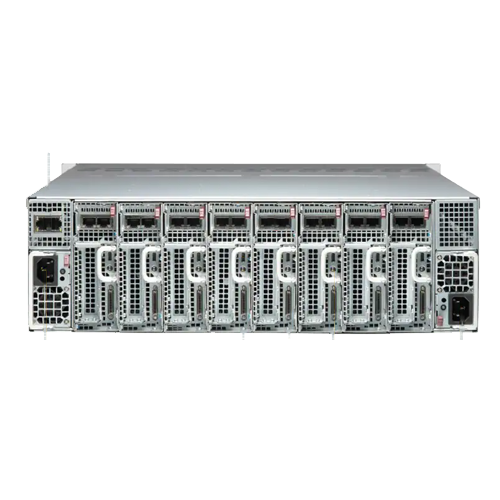

Invento i8308 Ryzen

Total 8 Nos. Nodes/Blades Available

AMD Ryzen (Zen4) CPU, AM5 Socket, LGA-1718.
AMD Knoll - Integrated I/O Controller Hub
4 DIMM sockets, DDR5 5200MHz
PCIe 5.0 x8 (in x16 slot) low profile slot and Micro-LP slots (Microl P upgradable)
2 x Front NVMe U.2/ SAS/ SATA3 drives w/ optional kits
2200W Redundant 80+ Titanium Level high-efficiency power supplies (Per System)
Key Applications: Cloud Computing; Web/Collocation Services; Web Cache, CDN, Video Streaming; Social Networking, Downloads; Corporate - WINS, DNS, Print, Login

Model	i8308 Ryzen
Processor (per Node)	CPU: Single Socket AM5 (LGA-1718) AMD Ryzen™ Zen4 7000 series Processors Core Count: Up to 16C/32T; Up to 16MB Cache per CPU Note: Supports 65W - 170W TDP CPUs (Air Cooled)
GPU (Per Node)	Max GPU Count: Up to 1 single-width GPU(s)
System Memory (per Node)	Memory Capacity: 4 DIMM slots Up to 128GB Unbuffered 3DS ECC/non-ECC UDIMM, DDR5-5200MHz Memory Type: 5200/4800/3600 MT/s Up to 128GB of memory with speeds of up to 5200MT/s (2DPC)/ 3600MT/s (1DPC) DIMM Sizes: 8GB, 16GB, 32GB Memory Voltage: 1.1V Error Detection: Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)	NVMe: U.2 NVMe (Native) SAS: SAS3 via SAS 3908 controller (requires add-on card) SATA: N/A (unless configured via a controller) Chipset: AMD Knoll - Integrated I/O Controller Hub Network Connectivity: No NIC option supported
Expansion Slots (per Node)	PCI-Express: 1 PCIe 5.0 x16 LP slot(s) 1 PCIe 5.0 x8 MLP slot(s)
Drive Bays (per Node)	Hot-swap: 2 x 3.5" hot-swap NVMe/SAS/SATA drive bays Enterprise SATA HDD only recommended M.2: 1 M.2 NVMe
Dimensions	Height: 5.21" (132 mm) Width: 17.26" (438 mm) Depth: 23.2" (589 mm)
System Cooling	Fans: 4x 8cm heavy duty fans with optimal fan speed control Air Shroud: 8 Air Shroud(s)
Power Supply	2200W Redundant Titanium Level power supplies (96% Efficiency)
Chassis	3U Rackmount
