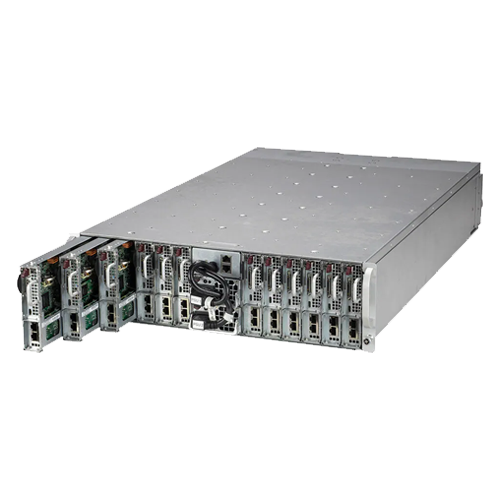

Invento i8312

Invento i8312

Per Node Specifications
  • 12 set of Intel® Xeon® E-2300 series and Pentium processor
  • 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
  • 12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
  • 12 set of Dual 1GbE LAN Ports
  • 12 set of 2 x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
  • 4 Nos. x 8cm Heavy duty fans with optimal cooling zone
  • 2200W Redundant Titanium Level high-efficiency power supplies
  • Key Applications: Cloud Computing, Web Hosting, VM, Online Game Server Hosting, IT Infrastructure, Web Cache, Social Networking

Specification

Model i8312
Processor (per Node)
  • CPU:
    • Single Socket H5 (LGA-1200)
    • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
  • Core Count: Up to 8C/16T; Up to 16MB Cache per CPU
  • Note: Supports 80W - 95W TDP CPUs (Air Cooled)
System Memory (per Node)
  • Memory:
    • Memory Capacity: 4 DIMM slots
    • Up to 128: 4x 32 GB DRAM
    • Memory Type: 3200MHz ECC DDR4 UDIMM
On-Board Devices (per Node)
  • SATA: SATA (6Gbps) via Intel® C256; RAID 0, 1, 5, 10 support
  • Chipset: Intel® C256
  • Network Connectivity: No NIC option supported
  • IMPI:
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
  • SATA: 2 SATA3 port(s)
  • LAN: 2
  • Video: 1 VGA port(s)
  • Serial Port: 1 COM Port(s) (1 KVM)
  • DOM: 1 SATA DOM (Disk on Module) port
Security
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features:
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
Expansion Slots (per Node) PCI-Express (PCIe): 1 PCIe 4.0 x8 MLP slot(s)
Drive Bays (per Node)
  • Drive Bays: 2x 3.5" NVMe/SATA drive bays (or 4x 2.5" drives, with 2 NVMe/SATA3 hybrid connectors available)
  • M.2: 1 M.2 NVMe OR 1 M.2 SATA3
Dimensions
  • Height: 5.21" (132.5mm)
  • Width: 17.5" (444.5mm)
  • Depth: 29.5" (749.3mm)
System Cooling

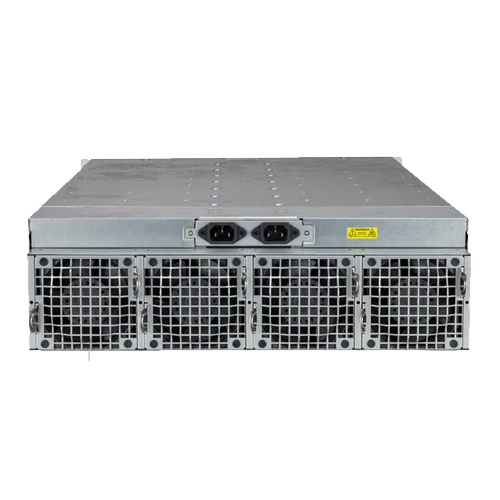

  • Fans: 4 x 9cm heavy duty fans with optimal fan speed control
  • Air Shroud: 12 Air Shroud(s)
Power Supply 2200W Redundant Titanium Level high-efficiency power supplies with PMBus
Form factor 3U Rackmountable
