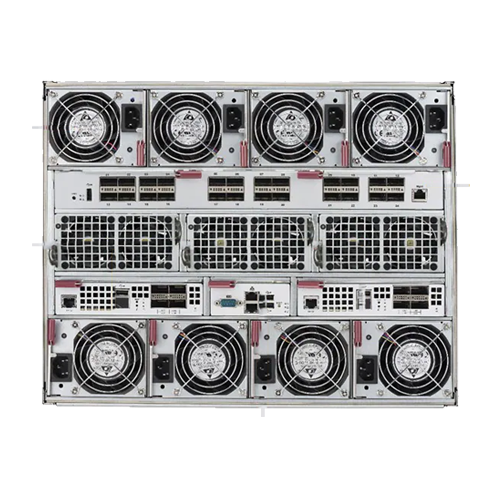

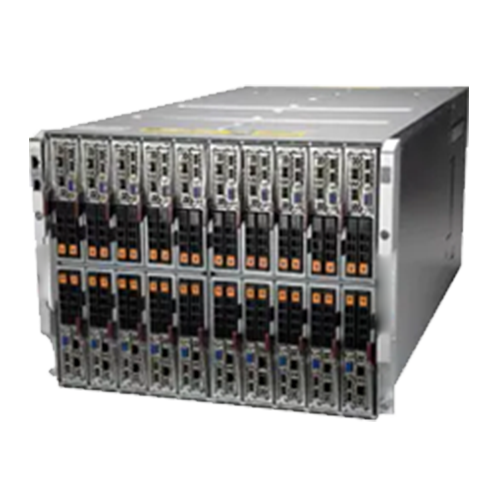

Invento i8320 EPYC

Invento i8320 EPYC

Per Node Specifications
  • 20 Nos. High Performance UP Blade Servers in a 8U High blade enclosure
  • Single AMD EPYC™ 7003/7002 Series Processor
  • Blade AIOM Card support
  • PCI-E Gen4 ready for SSD and Network IO
  • InfiniBand 200G HDR support
  • Front Access Design - front-loading nodes, HDD/SSD hot-swap, management and network IO
  • Security enhancement from booting to management
  • 8 x Redundant 2200W Titanium Level Power Supply
  • Key Applications: Cloud Computing, Scientific Research, Virtualization, High-performance Computing (HPC)

Specification

Model i8320 Ryzen
Processor (per Node)
  • CPU:
    • Single AMD EPYC™ 7003/7002 Series Processor
    • Socket SP3
    • Support CPU TDP up to 280W
  • Cores: Up to 64 Cores
System Memory (per Node)
  • Memory Capacity:
    • 8 DIMM slots
    • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
    • 8-channel memory bus
  • Memory Type Supported: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
  • DIMM Sizes: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
  • Memory Voltage: 1.2V
  • Error Detection:
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
  • Network Controllers:
    • 1 x 200G Mellanox IB HDR
    • Dual 25G onboard via Mellanox CX4
  • IPMI: Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
  • Graphics: Aspeed AST2500
  • Network Controllers: Dual 25GbE LAN via Mellanox CX4
Input / Output (per Node)
  • SATA/SAS/NVMe Hybrid:
    • 2 SATA3/NVMe with SATA3 mezzanine card
    • OR 2 SAS3/NVMe with SAS3 mezzanine card
  • LAN: 2x 25GbE Ethernet ports
  • TPM: 1 TPM 2.0 header
Expansion Slots (per Node)
  • PCI-Express: 1 PCI-E 4.0 x16 Proprietary Slot to Mezzanine (EDR/HDR/25G)
  • M.2:
    • Interface: 2 PCI-E 4.0 x4
    • Form factor: 22110
    • Key: M-key
Drive Bays (per Node)
  • Hot-swap: 2 Nos. Hot-Plug 2.5" NVMe/SATA3 drive bays
  • M.2: 2 Nos. PCI-E x4 M.2
Dimensions
  • Height: 14"
  • Width: 17.6"
  • Depth: 32"
System Cooling 3 optional fan trays with TDP up to 270W
Switch Modules Included in the System
  • 8U Blade HDR 200G InfiniBand Switch
  • External: 20x 200G HDR IB uplink
  • Internal: 1x 200G HDR IB to each node
Power Supply 8 x 2200W Redundant Power supply Titanium level (96% Efficiency)
Form factor 8U
