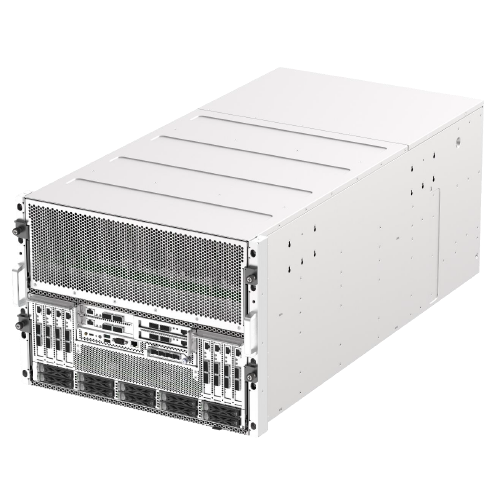

Invento i8408 Series

Invento i8408 Series

Invento i8408 Series

Salient Features
  • 5th/4th Gen. Intel® Xeon® Scalable processor support
  • Compatible with the latest NVIDIA HGX H200/H100 OAM module
  • 32 DIMM slots up to 8TB: 32x 256 GB DRAM memory type: 4800/5600MTs ECC DDR5
  • 8 PCIe Gen 5.0 X16 FHHL; 4 PCIe Gen 5.0 X8 FHHL Slots; Flexible networking options
  • 10 x 2.5" Hot-Swap NVMe drive Bays
  • 15 heavy duty fans with optimal fan speed control
  • 2 x 2700 Redundant Power Supplies (12V Output PSUs)
    Optional: 6 x 3200W Redundant Power Supplies (54V Output PSUs)

Specification

Model i8408
Processor Support Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors up to 64C/128T; up to 320MB Cache per CPU; up to 350W TDP
On-Board Devices Intel® C741 Chipset
System Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
GPU
  • Max GPU Count: up to 8 onboard GPU(s)
  • Supported GPU : NVIDIA SXM: HGX H200/H100 (NVLINK)
Expansion Slot
  • 8 PCIe Gen 5.0 X16 FHHL;
  • 4 PCIe Gen 5.0 X8 FHHL Slots
Drive Bays
  • 8 Nos. U.2 NVMe
  • 2 Nos. U.2 (from CPU) / 2 Nos. SATA
System Cooling 15 Nos. heavy duty fans (8086) with optimal fan speed control
Management KVM with dedicated LAN; IPMI 2.0; Redfish API
Onboard I/O
  • LAN: 1 RJ45 Dedicated BMC LAN Port, Flexible Networking
  • 1 VGA port(s)
  • USB: 2 Nos. USB Ports
  • COM: 1 Nos. Type-C Console Port
Button & LEDs
  • 1x PWR BTN with LED
  • 1x Front UID BTN with LED
  • 1x Health LED
System BIOS BIOS Type: AMI 32MB SPI Flash EEPROM
PC Health Monitoring
  • CPU:
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 8+4 Phase-switching voltage regulator
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated(PWM) fan connectors
  • Temperature
    • Monitoring for CPU and Chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply
  • 2 x 2700 Redundant Power Supplies (12V Output PSUs)
  • Optional: 6 x 3200W Redundant Power Supplies (54V Output PSUs)
    2 Nos. 54V PSU 0ption
Dimension / Form Factor
  • 8U Rackmount
  • Enclosure: 448 x 900 x 352mm
Chassis 8U Chassis
