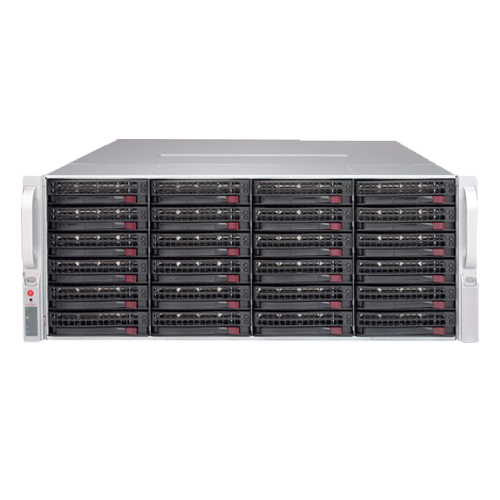

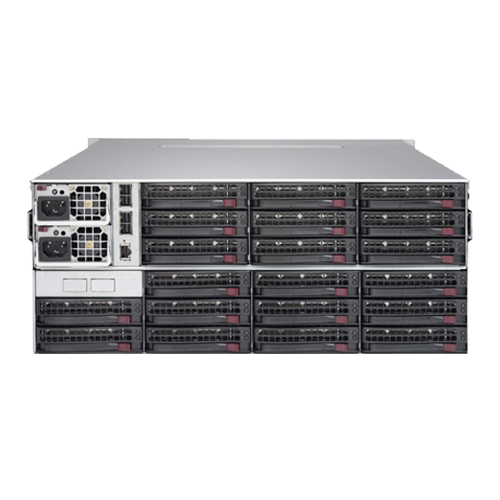

Invento i900-JBOD

i900-JBOD

Invento i900-JBOD

Salient Features
  • 44x (24 front + 20 rear) 3.5" hot-swap SAS/SATA drive bays supporting SAS3/2 or SATA3 HDDs with 12Gbps throughput
  • 7x 8cm (middle) hot-swap redundant cooling fans
  • JBOD Power Control Board with IPMI for remote monitor and power on-off
  • Palletized packaging for easy shipping and handling
  • Redundant 1280W Platinum Level (1+1) power supplies
  • 4x External mini SAS HD (SFF 8644) connectivity and IPMI RJ45 port

Specification

Model i900-JBOD
Drive Bays 44 x 3.5" hot-swap HDD bays for JBOD solution
Power Supply Redundant 1280W Platinum Level (1+1) power supplies
Dimension / Form Factor 4U SAS3 JBOD storage chassis
LED's On Panel
  • 1 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • Power Status LED
  • Power Fail LED
  • Unit Identification (UID) LED
Button's On Panel
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
Backplane
  • 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
  • 20-port 4U SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
Systems Cooling Fans 7 x 8cm hot-swap redundant PWM cooling fan(s)
