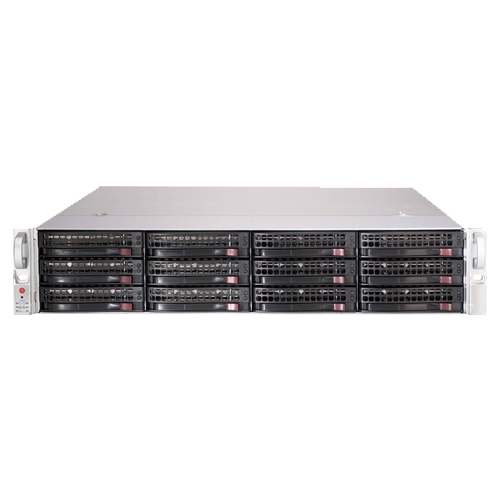

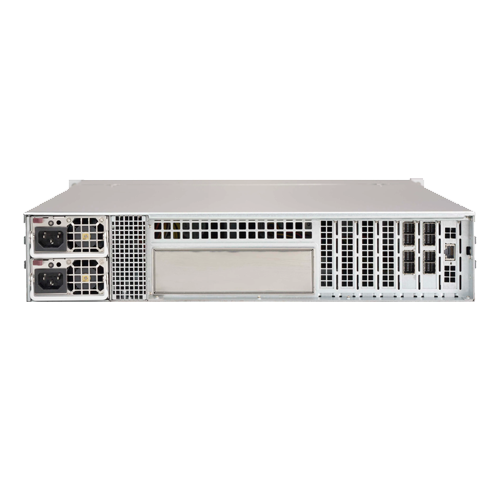

Invento i901 Purley-JBOD

i901 Purley-JBOD

Invento i901 Purley-JBOD

Salient Features
  • 2U Storage JBOD Chassis with capacity 12 x 3.5" hot-swappable HDDs bays
  • 3 x 80mm high efficient hot-swappable fans for best system cooling
  • 1x IPMI port for Remote System Power on/off and system monitoring
  • Dual Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
  • Support NTP for time synchronization & RTC battery backup
  • 8 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
  • 740W (1+1) 95% efficient Platinum level power supplies

Specification

Model i901 Purley-JBOD
Drive Bays 12 x 3.5" hot-swap drive bay
Power Supply 740W (1+1) Redundant 94% efficient Platinum level power supplies
Dimension / Form Factor 2U Storage JBOD Chassis
LED's On Panel 1 Network Activity LEDs
Button's On Panel
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
Backplane 12-port 2U SAS3 12Gbps dual-expander backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD/SSD
Systems Cooling Fans 3 x 80x38mm hot-swap cooling fan(s)
