Invento i902 Purley-JBOD

i902 Purley-JBOD

Invento i902 Purley-JBOD

Salient Features

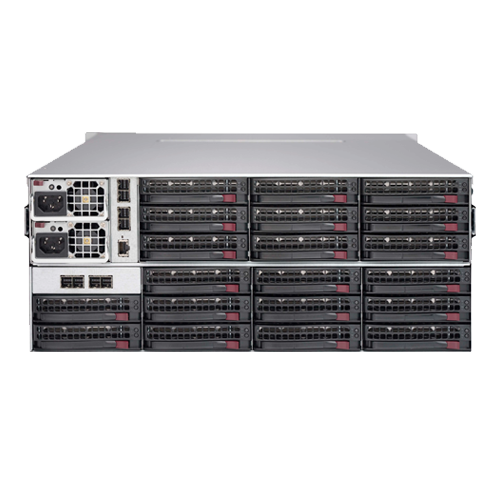

  • 4U Storage JBOD Chassis with capacity 44x (24 front + 20 rear) 3.5" hot-swap SAS drive bays supporting SAS3/2 HDDs with 12Gbps throughput
  • 7x 8cm (middle) hot-swap redundant cooling fans
  • 1x IPMI port for Remote System Power on/off and system monitoring
  • SAS3 (12Gbps) backplane with dual expanders supports SAS3 drives for load balancing and redundancy
  • Qualified SAS HBA / controller: 12Gb/s 2-external ports SAS3 HBA, 12Gb/s 2-external ports SAS3 RAID Controller
  • Redundant 1280W Platinum Level (1+1) power supplies

Specification

Model i902 Purley-JBOD
Drive Bays 44x (24 front + 20 rear) 3.5 " hot-swap SAS drive bays
Power Supply Redundant 1280W Platinum Level (1+1) power supplies 80PLUS (95% efficiency)
Dimension / Form Factor 4U Storage JBOD Chassis
LED's On Panel
  • 1 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • Power Status LED
  • Power Fail LED
  • Unit Identification (UID) LED
Button's On Panel
  • Power On/Off button
  • System Reset Button
  • Unit Identification (UID) button
Backplane
  • 24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
  • 20-port 4U SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
Systems Cooling Fans 7x 8cm (middle) hot-swap redundant cooling fans
