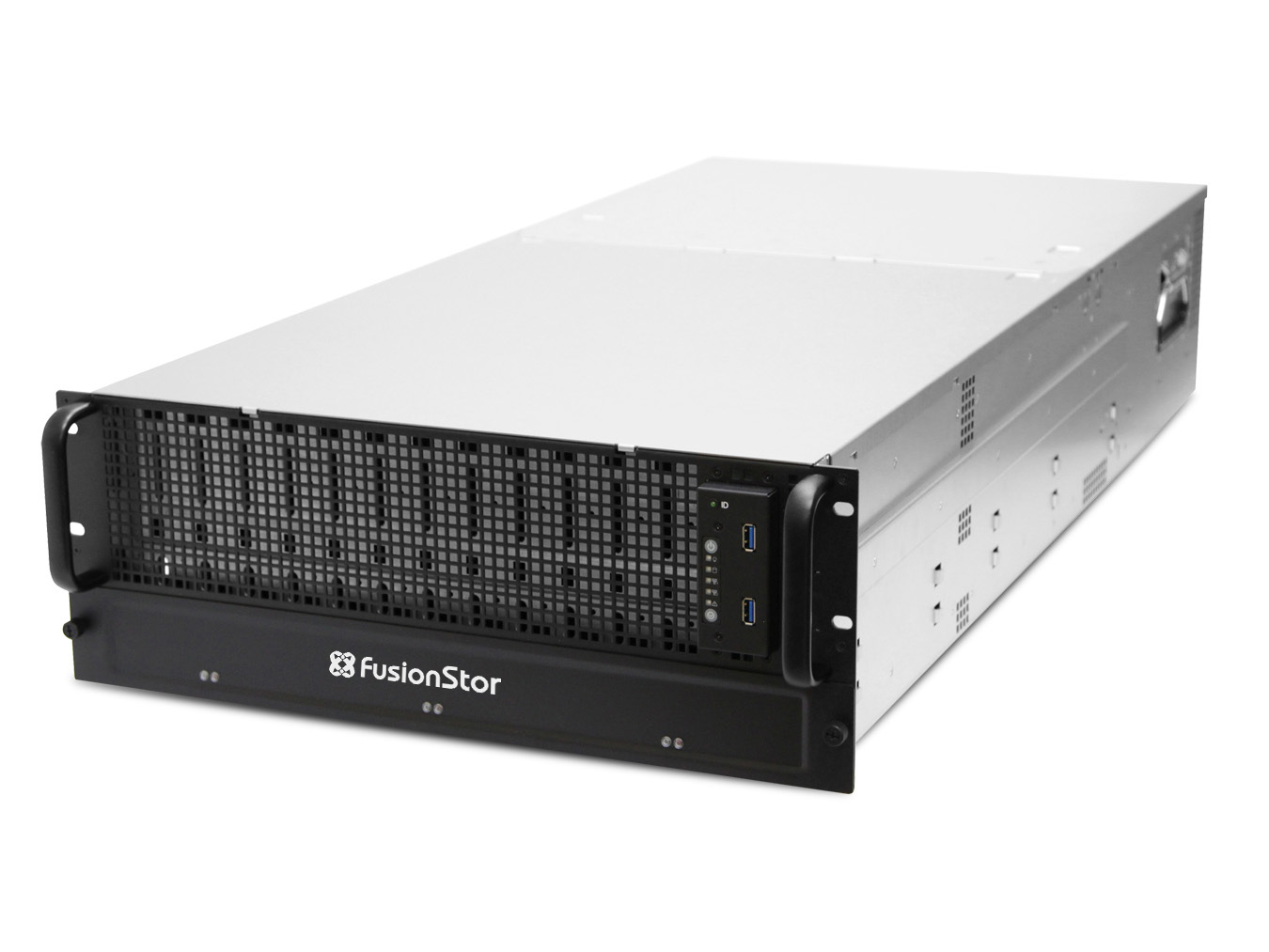

Invento i9063 Series

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
18 DIMM slots
2 PCIe 4.0 x8, 4 PCIe 4.0 x16
Dual LAN with 1GbE LAN
60 x 3.5"/2.5” Hot Swap drive bays
4 x 8cm hot-swap exhaust fan(s)
IPMI2.0, KVM with dedicated LAN
1600W Redundant power supply, 80Plus Platinum (92%-94% Efficiency)

Model	i9063
Processor Support	2 X 3rd Gen Intel® Xeon® Scalable processors Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s; Up to 40 cores
Core Logic	Intel® C621A Chipset
Memory	18 x DIMM slots; Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only
PCIe Expansion Slot	PCI-E 4 PCIe 4.0 x16 2 PCIe 4.0 x8 M.2 M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Options	SATA: Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	60 x 3.5" Hot swap drive bays 2 x 2.5" External drive bays
Networking	Dual LAN with Intel® i350 Gigabit Ethernet Controller 1 Dedicated IPMI Management Port
IPMI	ASPEED AST2600
Cooling Feature	4 x 80x38mm PWM & low-power consumption hot swap fans 2 x 60x38mm PWM easy swap fans (rear)
Onboard I/O	SATA: 14 SATA3 (6Gbps) port LAN: 2 1GbE LAN ports USB: 2 USB 2.0 ports, 2 USB 3.2 Video Output: 1 VGA port Serial Port / Header: 2 COM Ports (1 rear, 1 header) TPM: TPM Header
Power Supply	1600W (1+1) Redundant power supply, 80Plus Platinum (92%-94% Efficiency)
Dimension / Form Factor	4U Rackmountable WxDxH: 435mm x 950mm x 177mm
