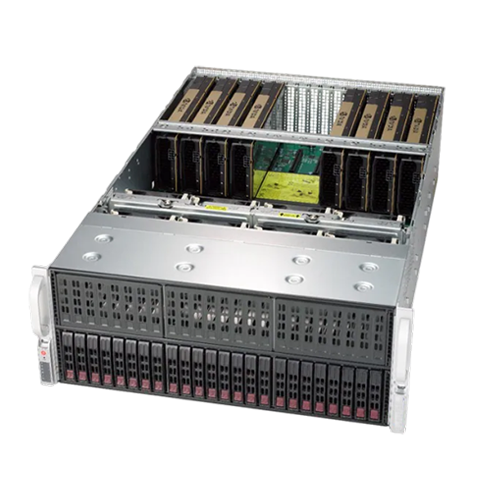

Invento i912 Purley Series

3D Rendering
Astrophysics, Chemistry
Cloud and Virtualization needs
Cloud Computing
Compute Intensive Application
Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 24 DIMM slots
8 PCI-E 3.0 x16 slots (support up to 8 double width GPU), 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x4
Up to 24 Hot-swap 2.5" drive bays; 8x 2.5" drives supported natively
8 Hot-swap 92mm RPM cooling fans
2x 10GBase-T LAN ports via Intel C622
2000W (2+2) Redundant Power Supplies Titanium Level (96%+ Efficiency)

Model	i912
Processor Support	2 X Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic	Intel® C622 chipset
Memory	24 x DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot	8 PCI-E 3.0 x16 slots (support up to 8 double width GPU), 2 PCI-E 3.0 x8 & 1 PCI-E 2.0 x4
RAID Options	SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays	Hot-swap Up to 24x 2.5" SAS/SATA drive bays 8x 2.5" SAS/SATA supported natively 2x 2.5" NVMe supported natively M.2 1 NVMe based M.2 SSD Form Factors: 2260, 2280, 22110
Networking	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
Network Controllers	Dual Port 10GbE from C622
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports USB: 4 USB 3.0 ports (rear) Video: 1 VGA Connector COM Port: 1 COM port (header)
Power Supply	2000W (2+2) Redundant Power Supplies Titanium Level (96%+ efficiency)
Dimension / Form Factor	4U Rackmount Rackmount Kit
