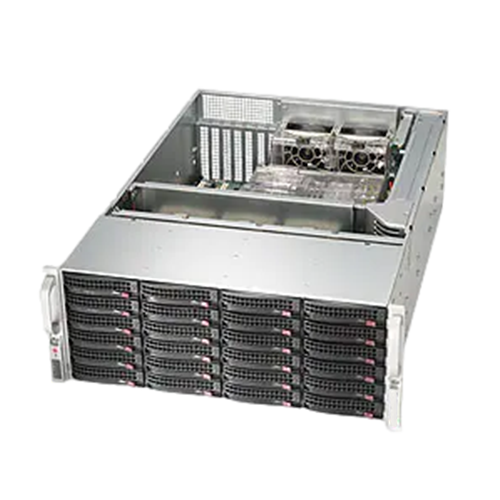

Invento i913 Purley Series

i913

Invento i913 Purley Series

Salient Features
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W
  • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
  • 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x16 (x16 || x8), 1 PCI-E 3.0 x8 (x0 || x8), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 36 x 3.5" hot-swap SAS/SATA drive bay (Can Expandable using JBOD)
  • Dual 10GbE LAN ports
  • IPMI 2.0, KVM with dedicated LAN
  • 1280W Redundant Platinum 95% Super Quiet Power Supply

Specification

Model i913
Processor Support 1 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake- SP), Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 205W
Core Logic Intel® C622 chipset
Memory
  • 24 x DIMM slots;
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 11 PCI-E 3.0 x16 (FH, FL) slots and
  • 1 PCI-E 3.0 x8 (FH, FL in x16 slot)
RAID Options SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays
  • Hot-swap
    • Up to 24x 2.5" SAS/SATA drive bays,
    • 8 x 2.5"SAS/SATA supported natively,
    • 2 x 2.5" NVMe supported natively
  • M.2
    • 1 NVMe based M.2 SSD,
    • Form Factors: 2260, 2280, 22110
Networking
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Network Controllers Dual Port 10GbE from C622
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC

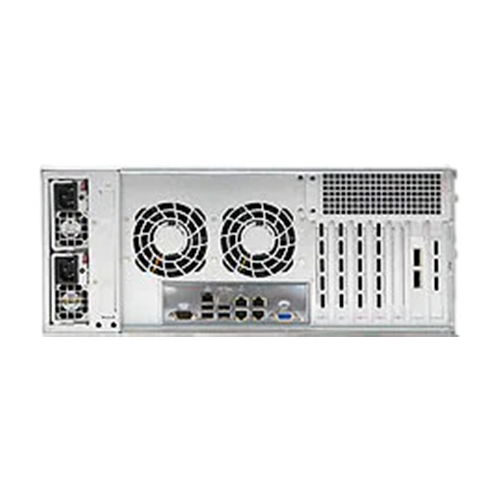

Onboard I/O
  • SATA: 8 SATA3 (6Gbps) ports
  • LAN: 2 RJ45 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port
  • USB: 4 USB 3.0 ports (rear)
  • Video: 1 VGA Connector
  • COM Port: 1 COM port (rear)
Power Supply 2000W (2+2) Redundant Power Supplies Titanium Level (96%+ efficiency)
Dimension / Form Factor
  • 4U Rackmount
  • Rackmount Kit
