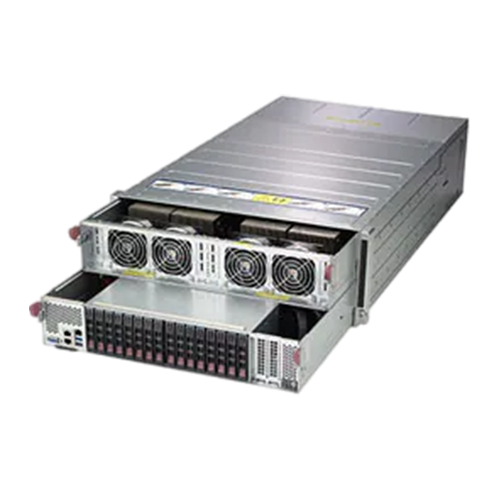

Invento i916 Purley Series

Used for Artificial Intelligence, Big Data Analytics, High-performance Computing, Research Lab/National Lab, Astrophysics, Business Intelligence
Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray) or up to 8x 2.5" NVMe Storage Devices, M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280, 221106
Support 8 Tesla V100 with 300GB/s NVLINK
Dual 10GBase-T LAN with Intel® X540
16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
8 x 92mm cooling fans
2200W Redundant (2+2) Power Supplies

Model	i916
Processor Support	2 X Intel® Xeon® Scalable Proc essors, 3 UPI up to 10.4GT/s
Core Logic	Intel® C621 chipset
Memory	24 x DIMM slots; Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot	4 PCI-E 3.0 x16 (LP) (GPU tray for GPUDirect RDMA), 2 PCI-E 3.0 x16 (LP, CPU tray) or up to 8x 2.5" NVMe Storage Devices, M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280, 221106
RAID Options	SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays	16 Hot-swap 2.5" SAS/SATA drives; Supports 8 NVMe drives
Networking	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
Network Controllers	Dual Port 10GBase-T from Intel X540 Ethernet Controller
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Onboard I/O	SATA: 6 SATA3 (6Gbps) ports USB: 2 USB 3.0 ports (rear) Video: 1 VGA port Serial Port / Header: 1 Fast UART 16550 port / 1 Header (internal) Others: 2 DOM support on the motherboard
Power Supply	2200W Redundant (2+2) Power Supplies Titanium Level (96%+)
Dimension / Form Factor	4U Rackmount Optional Rackmount Kit
