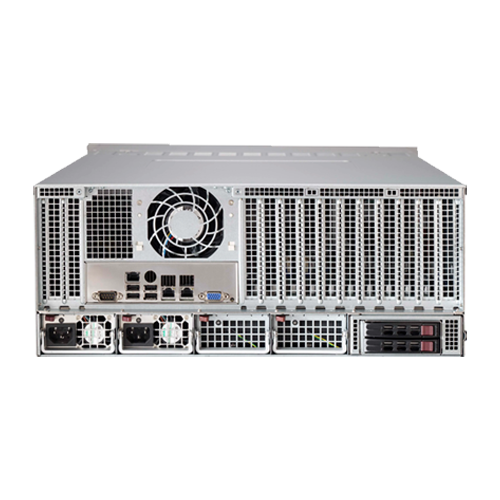

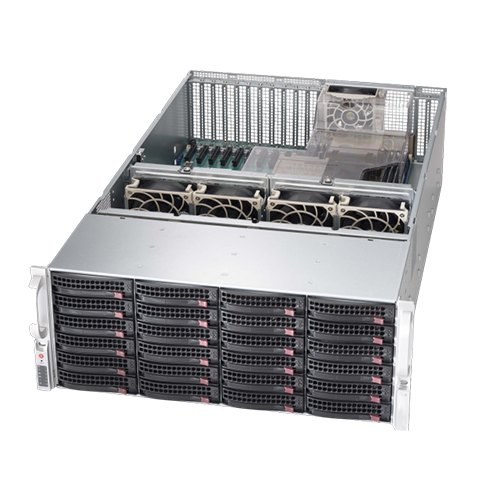

Invento i917 Purley Series

Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
2 PCI-E 3.0 x16, 8 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0
x4 (in x8 slot) M.2 Interface: 1 PCI-E 3.0 x4, M.2 Form Factor: 2280, 22110
Dual LAN with Intel® X550 10GBase-T Ethernet Controller
24 x 3.5" hot-swap drive bay
4 x 92x38mm Hot-Swap Cooling Fans, 1 x 8cm hot-swap exhaust fan(s) & air shroud
1200W/1000W Titanium Power Supply

Model	i917
Processor Support	2 X Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Core Logic	Intel® C621 chipset
Memory	16 x DIMM slots; Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM
PCIe Expansion Slot	2 PCI-E 3.0 x16, 8 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) Or 4 PCI-E 3.0 x16 and 4 PCI-E 3.0 x8 and 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: 1 PCI-E 3.0 x4, M.2 Form Factor: 2280, 22110
RAID Options	Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	24 x 3.5" hot-swap drive bay
Networking	Dual LAN with Intel® X550 10GBase-T Ethernet Controller
Cooling Feature	4 x 92x38mm Hot-Swap Cooling Fans 1 x 8cm hot-swap exhaust fan(s) & air shroud
Onboard I/O	SATA: 10 SATA3 (6Gbps) port USB: 2 USB 3.0 ports (rear) Video: 1 VGA port Serial Port / Header: 1 Fast UART 16550 port / 1 Header (internal) Others: 2 DOM support on the motherboard
Power Supply	2200W Redundant (2+2) Power Supplies Titanium Level (96%+)
Dimension / Form Factor	4U Rackmount Optional Rackmount Kit
