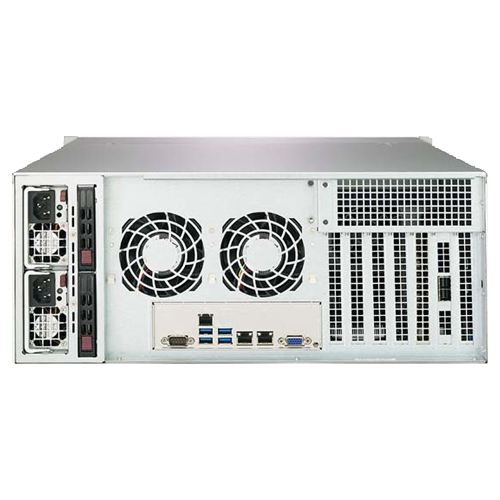

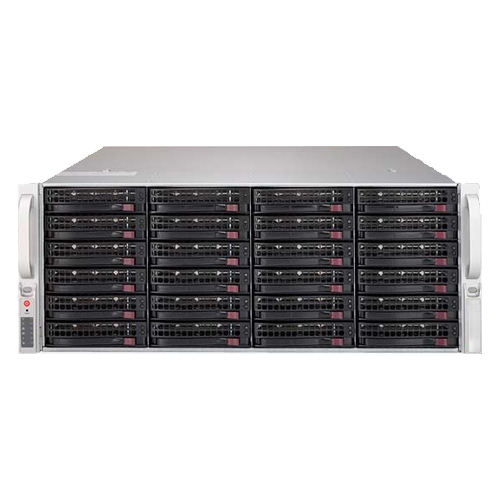

Invento i920e Purley Series

Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN
Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (CascadeLake/Skylake)
Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 16 DIMM slots
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
24 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
Broadcom 3108 SAS3 AOC
3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
1200W Redundant Power Supplies Titanium Level (96%)

Model	i920e
Processor Support	2 X 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic	Intel® C622 chipset
Memory	16 x DIMM slots; Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot	3 PCI-E 3.0 x16 slot 4 PCI-E 3.0 x8 slots Slot 2 & 3 occupied by controller and JBOD Expansion Port
RAID Options	SAS: SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID RAID 0, 1, 5, 6, 10, 50, 60 SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays	Hot-swap: 24 Hot-swap 3.5" SAS3/SATA3 drive bays Optional: 2 Optional Onboard NVMe M.2
Networking	2 RJ45 10GBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port
Network Controllers	Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Onboard I/O	USB: 4 USB 3.0 ports (rear), 1 Type A VGA: 1 VGA port Serial Port / Header: 1 Fast UART 16550 port / 1 Header
Power Supply	1200W Redundant Power Supplies Titanium Level 80PLUS (96% Efficiency)
Dimension / Form Factor	4U Rackmountable
