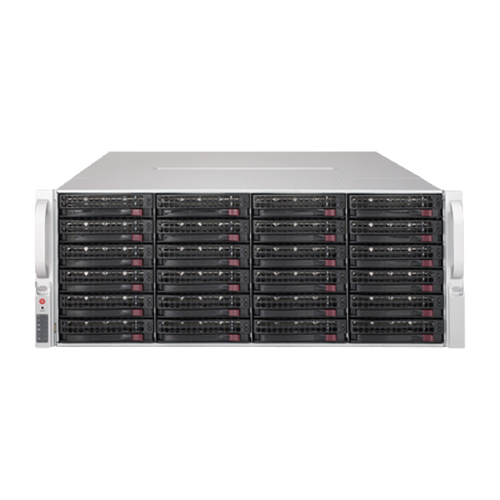

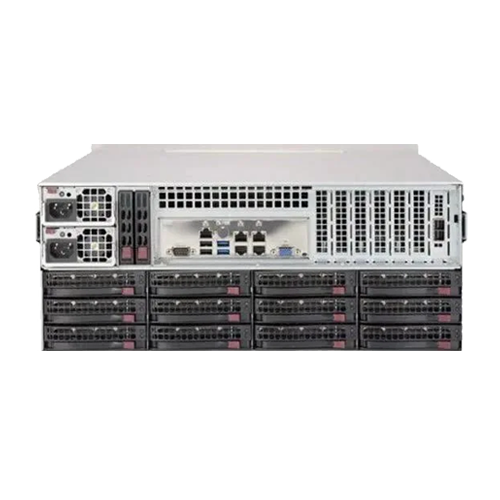

Invento i9237 Series

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
18 DIMMs; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
2 PCIe 4.0 x8, 4 PCIe 4.0 x16
36 x 3.5" hot-swap SAS/SATA drive bays
Dual LAN with 1GBase-T
7 x 80mm high-performance fan(s)
1200W/1000W Redundant Power Supplies Titanium Level (96% Efficiency)

Model	i9237
Processor Support	3rd Gen Intel® Xeon® Scalable processors, Dual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s; Support up to 40 cores
Core Logic	Intel® C622 Chipset
Memory	18 x DIMM slots; Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MT/s Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/s P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only
PCIe Expansion Slot	PCIe: 4 PCIe 4.0 x16, 2 PCIe 4.0 x8 M.2: M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Options	SATA: Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	Hot-swap: 36 x 3.5" hot-swap SAS/SATA drive bay with SES3 Optional 2 x 2.5" hot-swap drive bay
Network Controllers	Dual LAN with Intel® i350 Gigabit Ethernet Controller 1 Dedicated IPMI Management Port
Graphics	ASPEED AST2600 BMC
Onboard I/O	USB: 2 USB 2.0 port(s) (2 via header), 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) Video Output: 1 VGA port Serial Port / Header: 2 COM Ports (1 rear, 1 header) TPM: 1 TPM Header
Cooling Feature	7 x 80mm high-performance fan(s)
Power Supply	1200W/1000W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor	4U Rack mountable
