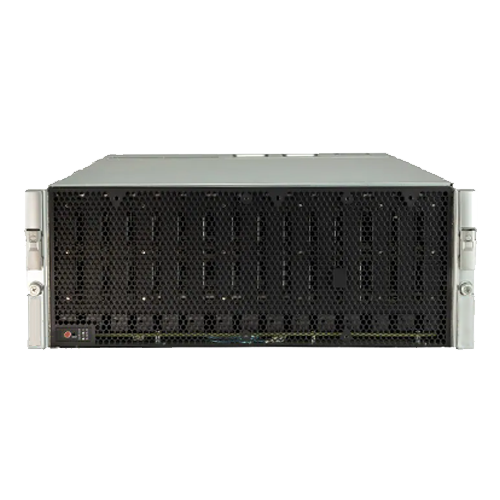

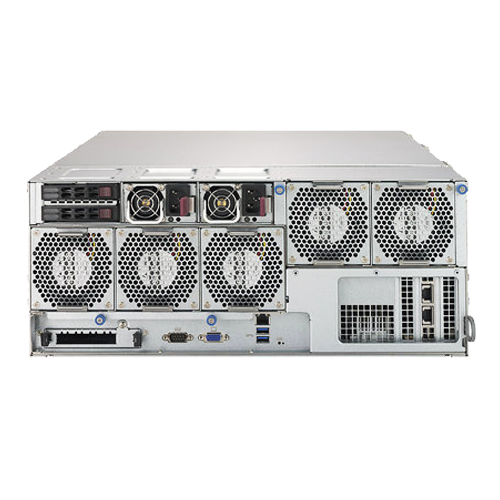

Invento i9260 Series

i9260

Invento i9260 Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM in 24 DIMM slots
  • PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) (Note: must bundle with Network card)
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3 (can support 2.5" without converter tray); 2 rear Hot-swap 2.5" drive bays; optional 6 NVMe bays
  • Broadcom 3108 SAS3, HW RAID
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 5 Hot-swap 8cm rear exhaust PWM fans
  • 2000W Redundant Power Supplies Titanium Level (96%)

Specification

Model i9260
Processor Support 2 X Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots;
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8,
  • 1 SIOM card support (flexible networking)
RAID Options
  • SAS: SAS3 (12Gbps) via Broadcom 3108; HW RAID RAID 0, 1, 5, 6, 10, 50, 60
  • SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays
  • 60 Hot-swap 3.5" SAS3/SATA3 drive bays with SES3 (can support 2.5" without converter tray);
  • 2 rear Hot-swap 2.5" drive bays;
  • Optional 6 NVMe bays
Networking
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Network Controllers 1 Dedicated IPMI LAN port
Graphics ASPEED AST2500 BMC
Cooling Feature 5 Hot-swap 8cm rear exhaust PWM fans
Onboard I/O
  • SATA: 4 SATA3 (6Gbps) ports
  • USB: 2 USB 3.0 ports (rear), 1 Type A
  • VGA: 1 VGA D-Sub connector port
  • Serial Port / Header: 1 Fast UART 16550 port / 1 Header
Power Supply 2000W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor 4U Rackmountable
