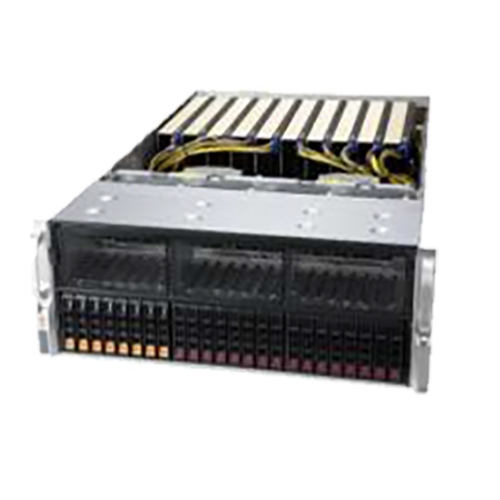

Invento i9324 Series

Invento i9324 Series

i9324

Invento i9324 Series

Salient Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • 32 DIMMs; up to Up to 8TB DRAM 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM;
  • 12 PCI-E Gen 4.0 X16 FHFL Slots AIOM/OCP 3.0 Support
  • Total 24x 2.5" Hot-swap drive bays
  • HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 8 heavy duty fans with optimal fan speed control
  • 4 x 2000W redundant Titanium level power supplies (93% Efficiency)

Specification

Model Invento i9324 Series
Processor Support 2 X Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
Core Logic Intel® C621A Chipset
Memory
  • 32 x DIMM slots;
  • Up to 32 DIMM slots
  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
  • Intel® Optane™ persistent memory 200 series
PCIe Expansion Slot PCI-E:
  • Slot 1: PCI-E 4.0 x16 FHFL
  • Slot 2: PCI-E 4.0 x16 FHFL
  • Slot 3: PCI-E 4.0 x16 FHFL
  • Slot 4: PCI-E 4.0 x16 FHFL
  • Slot 5: PCI-E 4.0 x16 FHFL
  • Slot 6: PCI-E 4.0 x16 FHFL
  • Slot 7: PCI-E 4.0 x16 FHFL
  • Slot 8: PCI-E 4.0 x16 FHFL
  • Slot 9: PCI-E 4.0 x16 FHFL
  • Slot 10: PCI-E 4.0 x16 FHFL
  • Slot 11: PCI-E 4.0 x16 FHFL
  • Slot 12: PCI-E 4.0 x16 FHFL
RAID Options SATA: SATA3 (6Gbps); RAID 0/1/5/10 support
Drive Bays
  • Hot-swap: 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe dedicated)
  • M.2: 2 M.2 NVMe OR 2 M.2 SATA3
Network Controllers
  • Dual LAN with 1GbE LAN via Intel® i350-AM2
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2600 BMC
Onboard I/O
  • USB: 5 USB 3.2 Gen2 port(s) (2 via header; 2 rear; 1 type A)
  • VGA: 1 VGA port(s)
  • Serial Port / Header: 1 COM Port(s) (1 header)
Cooling Feature 8 heavy duty fans with optimal fan speed control
Power Supply 4 x 2000W redundant Titanium level power supplies (93% Efficiency)
Dimension / Form Factor 4U Rack mountable
