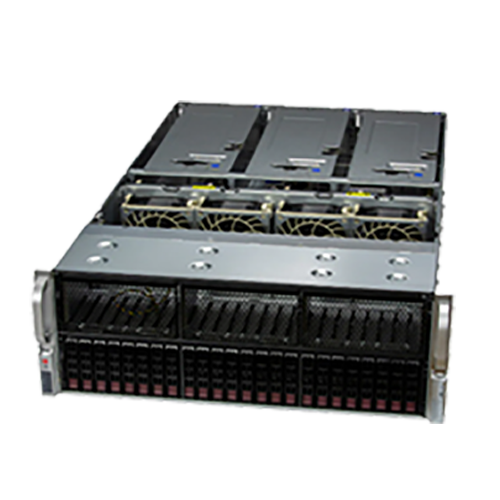

Invento i9344 Series

Invento i9344 Series

i9344

Invento i9344 Series

Salient Features
  • 3rd Generation Intel® Xeon® Scalable processors Quad Socket LGA-4189 (Socket P+) supported, CPU TDP support Up to 250W TDP, 6 UPI up to 10.4 GT/s
  • 48 DIMM slots; Up to 12TB 3DS ECC LRDIMM/ RDIMM, DDR4-3200MHz; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® DCPMM
  • 18 Nos. PCIe 3.0 Slots
  • Quad LAN with 2x 10G BaseT with Intel X710-TM4 and 2x 10G SFP+ with Intel X710-TM4, (Optional) AIOM up to 100G QSFP 28
  • 1600W Redundant Platinum Level power supplies
  • Used For: Artificial Intelligence (AI), Business Intelligence, ERP, CRM, Scientific Virtualization, In-Memory Database, HCI, SAP HANA

Specification

Model i9344
Processor
  • CPU
    • Quad Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
  • Core Count
    • Up to 28C/56T; Up to 38.5MB Cache per CPU
  • Note for TDP
    • Supports 120W - 250W TDP CPUs (Air Cooled)
GPU Max GPU Count: Up to 6 double-width GPU(s)
System Memory
  • Memory Capacity and DIMM Slots
    • 48 DIMM slots
    • Up to 12TB 3DS ECC LRDIMM, DDR4-3200MHz;
      Up to 12TB 3DS ECC RDIMM, DDR4-3200MHz
  • Memory Type Supported
    • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
  • DIMM Sizes Supported
    • 16GB, 32GB, 64GB, 128GB
    • LRDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
    • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
  • Memory Voltage
    • 1.2V
  • Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
On-Board Devices
  • Chipset
    • Intel® C621A
  • SATA
    • Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • IPMI
    • ASPEED AST2500 BMC
Drive Bays 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays
Networking
  • 1 RJ45 Dedicated BMC LAN ports
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
Cooling Features
  • Fans:
    • 4 Direct to Chip (D2C) Cold Plate Fan(s) (optional)
    • 6 Heavy duty counter-rotating 6cm Fan(s) (optional)
  • Liquid Cooling:
    • Direct to Chip (D2C) Cold Plate (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Onboard I/O
  • USB: 2 USB 3.0 ports, 2 USB 2.0 port(s) (front)
  • Video Output: 1 VGA port(s), 1 DisplayPort port(s)
  • TPM: TPM Header
Features
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
Power Supply 1600W (2+2) Redundant Titanium level power supplies Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
