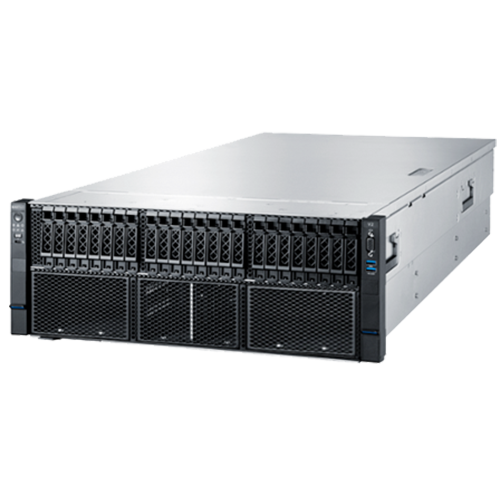

Invento i9405 EPYC Series

Invento i9405 EPYC Series

i9405 EPYC Series

Invento i9405 EPYC Series

Key Applications
  • HPC, AI/Deep Learning, Cloud Gaming, Design & Visualization, Diagnostic Imaging, VDI, Media/Video Streaming, Animation and Modeling, 3D Rendering
Salient Features
  • 8 x FHFL double-width GPU in 4U
  • Supports additional 2x double-width PCIe GPU, 1x FL single-width PCIe GPU
  • 2 x AMD EPYCT™ 9004 processors
  • 24 x 2.5" Hot-Swap NVMe/SATA/SAS drive bays
  • Front/back I/O, supports flexible operating scenario
  • (2+2) 3000W Redundant Power Supplies

Specification

Model i9405 EPYC Series
Processor Support Up to one or two 4th Generation AMD EPYCT™ processors up to 128 cores, 1150MB L3 cache per CPU up to 400W TDP
System Memory
  • Up to 24 x DDR5 DIMMs
  • 12 x DDR5 memory channels per processor, up to 6000MHz
  • RDIMM and 3DS RDIMM supported
Drive Bays Front:
  • 24 x 2.5” SSD, upto 16 x NVMe U.2 drives
  • 2 x NVMe/SATA M.2
Expansion Slots Supports up to 11 x PCIe x16 Gen5 slots
On-Board Devices System on chip
Graphics ASPEED AST2600
GPU
  • Supports 8 x FHFL double-width PCIe 5.0 GPU cards,
  • Supports additional 2 x FL double-width PCIe GPU, 1x FL single-width PCIe GPU
Input/Output
  • Front: 1 x USB 2.0 port, 1 x USB 3.0 port, 1 x VGA port, 1 x Type-C
  • Rear: 2 x USB 3.0 ports, 1 x BMC management network port, 1 x micro USB port, 1 x VGA port
System Cooling 6 hot-swappable fan modules, support N + 1 redundancy, support intelligent speed regulation and abnormal alarm
Power Supply 4 x 12V 3000W, 2+2 Redundant Platinum/Titanium level Power Supplies
Security Features TPM 2.0 (trusted Platform Module)
Management Integrated with 1 x independent 1000 Mbps network port, dedicated for IPMI remote management
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltage, Memory
  • FAN:
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature:
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C to 35°C, Non operation temperature: (-40°F to 70°F)
  • Working relative humidity: 20% to 90% (non-condensing)
Dimension / Form Factor
  • 4U Rackmount
  • Enclosure: 174.5mm (H) x 447mm (W) x 850mm (D)
