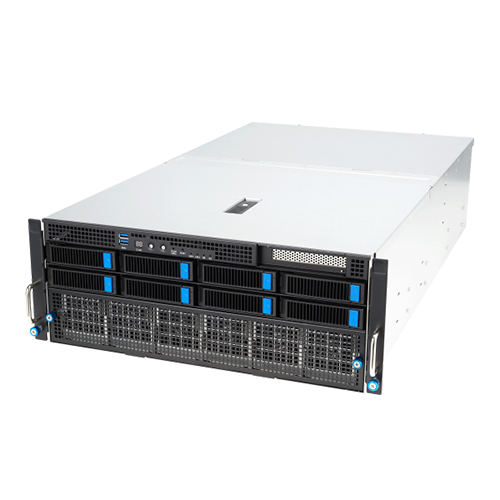

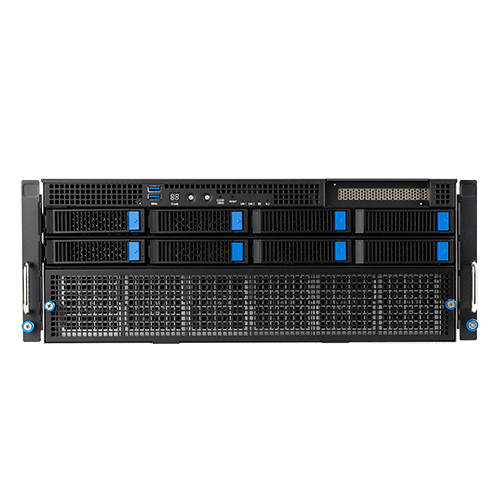

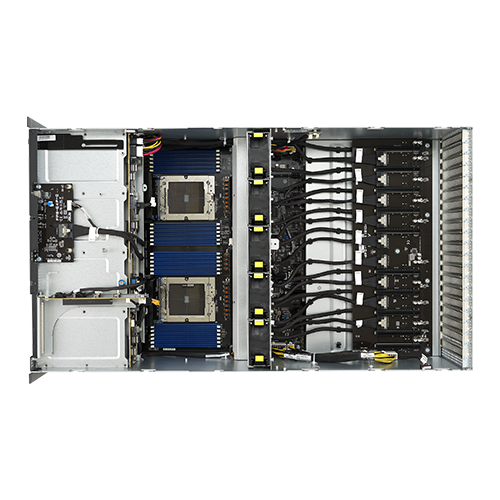

Invento i9408 EPYC

i9408 EPYC

Invento i9408 EPYC

Salient Features
  • Dual AMD EPYC™ 9004 series processor family
  • Supports Up to 8 Nos. GPGPU cards
  • Dual 1G or 10G BASE-T LAN ports
  • Total 11 Nos. PCIe Slots available
  • 8 x 3.5"/2.5” NVMe/SAS/SATA hot-swappable HDD/SSD bays
  • AST2600 Graphics
  • Redundant PSU 80PLUS Platinum Level

Specification

Model i9408 EPYC
Processor Support 2 X AMD EPYC™ 9004 series processor family, per processor cTDP up to 400W
System Memory
  • 24 DIMM slots;
  • DDR5 4800/4400 RDIMM/ 3DS RDIMM
  • 64GB, 32GB, 16GB RDIMM
  • 256GB, 128GB RDIMM 3DS
Drive Bays
  • 8 x 3.5" Front Hot-swap NVMe/SATA/SAS Storage Bays
  • 1 x M.2 Slot
Expansion Slots
  • 1 x PCIe x8 slot (Gen5 ,LP,HL) for HBA/RAID cards
  • 8 x PCIe x16 slot (Gen5, FH,FL) for dual-slot GPU card
  • 1 x PCIe x16 slot (Gen5 ,FH,FL) for NIC card
  • 1 x PCIe x8 slot (Gen5 FH,FL) for NIC Card or Gen5 x16 OCP socket option
Core Logic System on Chip (SoC)
Cooling feature
  • 5 Nos. Hot Swap Redundant Cooling fans (default)
  • Provision to add more 6 nos. Cooling fans
Onboard I/O
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x COM port
  • 1 x TPM Header
Buttons/LED Indicators
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • 1 x System status LED
  • 1 x HDD access LED
Network Controllers
  • 2 x RJ45 1GbE or 10GbE LAN ports (rear)
  • 1 x RJ45 Dedicated IPMI LAN port
Video
  • Integrated in Aspeed® AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200@60Hz 32bpp, DDR4 SDRAM
Power Supply
  • 2+2 Redundant 2600W/3000W 80 PLUS Platinum Power Supply OR
  • 2+1 Redundant 3000W 80 PLUS Platinum Power Supply
Operating Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
Dimension / Form Factor
  • 4U Rackmount
  • Dimensions: 800mm x 440mm x 174.5 mm
