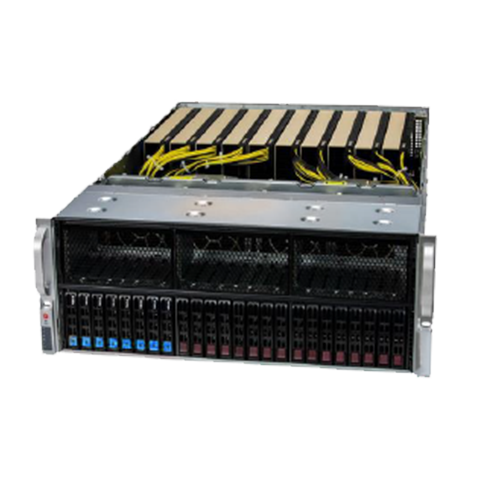

Invento i9424 Series

Invento i9424 Series

i9424

Invento i9424 Series

Salient Features
  • 4th Gen Intel® Xeon® Scalable processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  • 32 DIMM slots, support Up to 8TB 4800MHz ECC DDR5
  • 13 PCIe Gen 5.0 X16 FHFL Slots
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays
  • 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  • Networking options available via AIOM cards
  • 4 x 2700W (2+2) Redundant Power Supplies, Titanium Level
  • Used for: High Performance Computing, VDI, AI/Deep Learning Training, Media/Video Streaming, Cloud Gaming, Animation and Modeling, Design & Visualization, 3D Rendering, Diagnostic Imaging

Specification

Model Invento i9424 Series
Processor
  • CPU:
    • 4th Gen Intel® Xeon® Scalable processors
    • Dual Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
    • SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
  • Core: Up to 60 cores
System Memory
  • Memory Capacity:
    • 32 x DIMM slots;
    • Up to 8TB 3DS ECC RDIMM, DDR5-4800MHz
  • Memory Type:
    4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
  • DIMM Sizes:
    • 16GB, 32GB, 64GB, 128GB, 256GB
    • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
  • Memory Voltage: 1.1V
  • Error Detection:
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
GPU
  • Max GPU Count: Supports up to 10 Double Width, 10 Single Width GPUs
  • CPU-GPU Interconnect: PCIe 5.0 x16 Switch Dual-Root
  • GPU-GPU Interconnect: NVIDIA® NVLink™ Bridge (optional)
Expansion Slots
  • PCIe: 12 PCIe 5.0 x8 PCIe5.0 MCIO connector
  • M.2:
    • M.2 Interface: 2 PCIe 4.0 x 4
    • Form Factor: 22110, 2280
    • Key: M-Key
On-Board Devices
  • Chipset: Intel® C741
  • IPMI:
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Network Connectivity: 2 x 10GbE BaseT with Intel® X710-AT2
Input / Output
  • USB: 2 USB port(s) (2 rear)
  • Video Output: 1 rear port(s)
Power Supply 4 x 2700W (2+2) Redundant Power Supplies, Titanium Level (96% Efficiency)
Dimensions
  • Height 7" (178mm)
  • Width 17.2" (437mm)
  • Depth 29" (737mm)
Security
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features:
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
Chassis Form Factor: 4U Rackmount
Drive Bays / Storage
  • Hot-swap: 24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid; 8x 2.5" NVMe dedicated)
  • M.2: 2 x M.2 NVMe
System Cooling
  • Fans: 8 heavy duty fans with optimal fan speed control
  • Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
