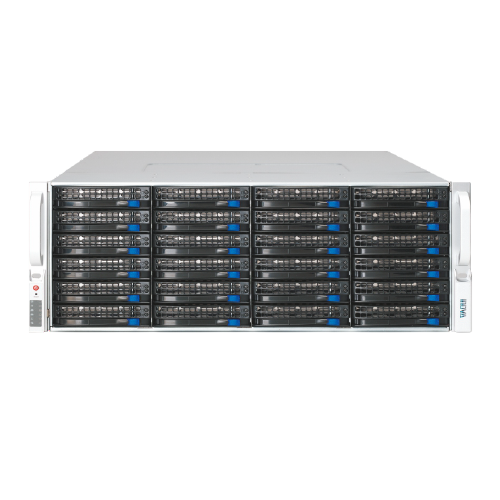

Invento i9524 EPYC

Invento i9524 EPYC

i9524 EPYC

Invento i9524 EPYC

Salient Features
  • Supports Dual AMD EPYC™ 9005/9004 Series Processors
  • 24 DIMMs
  • 4 PCIe 5.0 slots
  • Total 24 x hot-swap 3.5" or 2.5" SAS3/SATA3 drive bays
  • Dual 1G/10G Ethernet Ports
  • 8 Nos. x 80x80x38 heavy duty fans with optimal fan speed control
  • 800W/1200W (1+1) Redundant Platinum level power supplies (92%-94% Efficiency)

Specification

Model i9524 EPYC
Processor Support
  • 2 x Dual AMD EPYC™ 9005/9004 Series Processors
  • Support cTDP up to 400W
Core Logic System on Chip
Memory
  • 24 x DIMM slots;
  • DDR5 memory supported
  • 12-Channel memory per processor
PCIe Expansion Slots
  • 4 x PCIe Gen5 x16 expansion slots
  • M.24
    • M.2 Interface: 1 PCIe 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
IPMI Feature
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
RAID Options Optional using Additional RAID Controller card
Graphics ASPEED AST2600 BMC
Drive Bays
  • 24 x Hot-swap 3.5" SAS/SATA drive bays (24 front)
  • 2 x Hot-swap 2.5" Bays (rear, optional)
Network Controller
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x 1Gbase-T/ 10GbE (optional) ports
Cooling feature 8 Nos. x 80x80x38 heavy duty fans with optimal fan speed control
Onboard I/O
  • USB: 4 USB 3.2 Gen1 port(s)
  • Video: 1 VGA port
  • Serial Port: 1 COM Port (Header)
  • 1 TPM Header
Regulations
  • FCC/CE
  • RoHS
  • BIS Certified
Power Supply 800W/1200W (1+1) Redundant Platinum level power supplies (92%-94% Efficiency)
Dimension / Form Factor 4U Rack mountable
