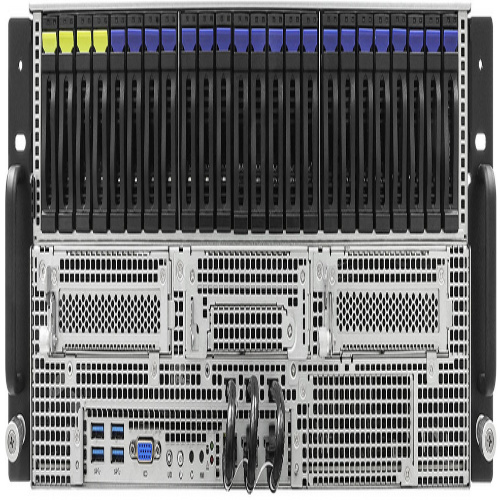

Invento i9525 EPYC Series

Invento i9525 EPYC Series

i9525 EPYC Series

Invento i9525 EPYC (Ver. 1.0)

Salient Features
  • Supports DP 8 x Gen5 PCIe GPUs
  • Used for AI , AI Training , AI Inference & HPC Applications
  • Dual supports AMD EPYC 9005*/9004 Series Processors
  • 24 DIMMs; Supports DDR5 RDIMM
  • Upto total 24 x hot-swap 2.5" SAS/SATA/NVMe drive bays
  • Upto 5 Nos. x Heavy duty fans with optimal fan speed control
  • 3+1 1000W/1600W (240V) 80 PLUS Platinum redundant power supplies

Specification

Model i9525 EPYC
Processor Support
  • 2 X AMD EPYC 9005*/9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
  • Dual Socket SP5 (LGA 6096)
  • Up to 400W
Core Logic System on Chip
Memory
  • 24 x DIMM slots;
  • DDR5 memory supported
PCIe Expansion Slot
  • PCI-E Slots
    • Rear:
      • 8 FHFL dual-slot PCIe5.0 x16,
      • 1 FHHL PCIe5.0 x8
    • Front: 1 FHHL PCIe5.0 x8
  • M.2
    • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
RAID Options Need to add additional RAID card
Drive Bays
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 20 Hot-swap 2.5" SATA/SAS* drive bays
*Additional RAID/HBA card required
Networking Controller
  • 1 x 10/100/1000 Management LAN
  • 2 x 1G BASE-T LAN ports
  • 1 OCP NIC 3.0 (PCIe5.0 x16)
Graphics
  • Integrated in Aspeed® AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200@60Hz 32bpp
GPU Supported NVIDIA H100 PCIe, NVIDIA H100 NVL, Nvidia L40S, Nvidia L40
Cooling Features 5 x 80mmx80mm heavy duty fans with optimal fan speed control
Onboard I/O
  • USB: Upto 6 x USB 3.2 Gen1
  • Video Port: 1 x VGA
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • TPM Header
Power Supply (3+1) 1000W/1600W (240V) 80 PLUS Platinum Redundant Power Supplies (92-94% Efficiency)
Dimension / Form Factor 4U Rack Mountable
