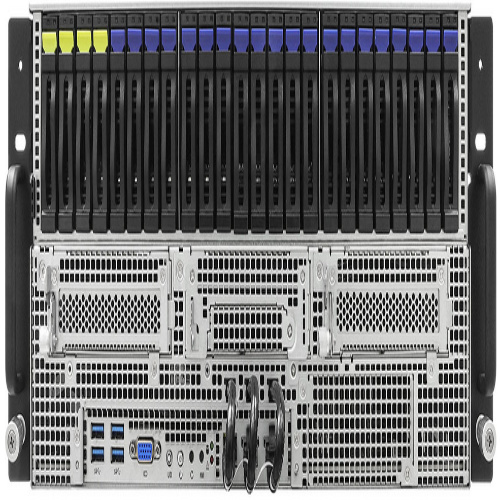

Invento i9526 Series

Invento i9526 Series

i9526 Series

Invento i9526

Salient Features
  • Dual Intel® Xeon® 5th/4th Gen Intel® Xeon® Scalable Processors
  • 32 DIMMs; Supports DDR5 RDIMM/MRDIMM
  • Total 24 x hot-swap 2.5" SAS/SATA/NVMe drive bays
  • Upto 5 Nos. x Heavy duty fans with optimal fan speed control
  • 1000W/1600W (3+1) 80 PLUS Platinum Redundant power supplies

Specification

Model i9526
Processor Support
  • 2 X Intel® Xeon® 5th/4th Gen Intel® Xeon® Scalable Processors
  • TDP up to 400W
Core Logic System on Chip
Memory
  • 32 x DIMM slots;
  • DDR5 memory supported
  • 8-Channel memory per processor
  • Supports DDR5 288-pin RDIMM, RDIMM-3DS
PCIe Expansion Slot
  • PCI-E Slots
    • 8 FHFL dual-slot PCIe5.0 x16 (CPU direct link)
    • 1 FHHL PCIe5.0 x16
    • 1 FHHL PCIe4.0 x8
  • M.2 Slot
    • 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
RAID Options Can support using additional RAID Controller card
Drive Bays
  • 4 hot-swap 2.5" NVMe (PCIe5.0 x4) drive bays
  • 8 hot-swap 2.5" SATA drive bays
  • 12 Hot-swap 2.5" SATA/SAS* drive bays
*Additional RAID/HBA card required to support the 12 x 2.5" SATA/SAS drive bays
Networking Controller
  • 1 x 10/100/1000 Management LAN
  • 2 x 1G BASE-T LAN ports
GPU Supported Can support up to 8 x Dual Width GPU cards
Graphics
  • Integrated in Aspeed® AST2600
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200@60Hz 32bpp
Cooling Features 5 Nos. x Middle Hot-swap 80x80 mm fans
Onboard I/O
  • USB: Upto 6 x USB 3.2 Gen1
  • Video Port: 2 x VGA ports
  • 1 x Power button with LED
  • 1 x ID button with LED
  • 1 x Reset button
  • 1 x NMI button
  • TPM Header
Power Supply 1000W/1600W (3+1) 80 PLUS Platinum Redundant power supplies
Dimension / Form Factor 4U Rack Mountable
