Invento i6427 Series

i6427

Invento i6427 Series

Salient Features
  • 5th/4th Gen. Intel® Xeon® Scalable Dual Socket E (LGA-4677) processors
  • Intel® C741 Chipset
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800/5600
  • Optional PCIe slot configurations up to 8 PCIe 5.0 x 8 or 4 PCIe 5.0 x 16 slots with support for double-width GPU/Accelerator cards
  • Flexible networking options with up to 1 AIOM networking slot (OCP NIC 3.0 compatible)
  • 12 x 3.5"/2.5" or 24 x 2.5" Hot-Swap NVMe/SATA/SAS drive bays
    2 x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
  • 4 heavy duty Hot-Swap fans with optimal fan speed control

Specification

Model i6427
Processor Support
  • 5th/4th Gen. Intel® Xeon® Scalable processors
  • Dual Socket LGA-4677 (Socket E) supported
  • 4 UPI Intel Xeon CPU Max Series with high bandwidth memory (HBM)
    Supports up to 350W TDP CPUs (air-cooled)
Core Logic Chipset: Intel® C741
Memory
  • 32 DIMM slots
  • Up to 8TB ECC RDIMM, DDR5-4800/5600MHz
Expansion Slot
  • Up to 8 x standard PCIe 5.0 slots and 1 x OCP 3.0 slot
  • 2 x DW GPU or 4 x SW GPU
Drive Bays

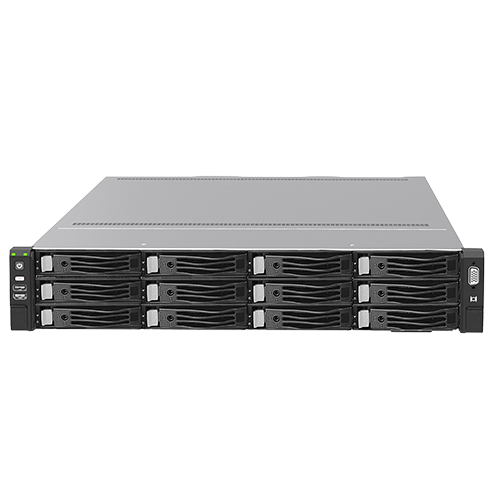

  • 12 x 3.5"/2.5" Hot-Swap NVMe/SATA/SAS drive bays
    Optional 4 x 2.5" drives (Rear)
    Internal : 2 x 2280 M.2 (SATA/NVMe) onboard
OR

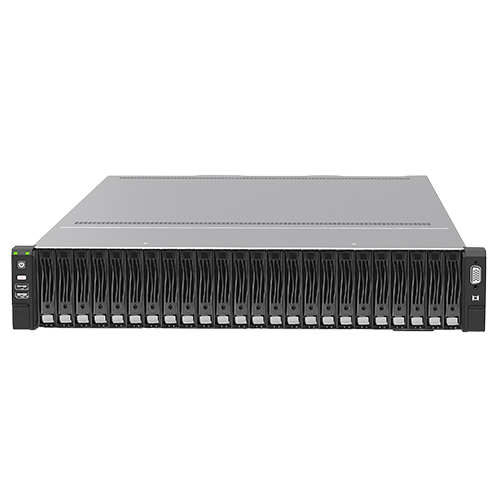

  • 24 x 2.5" Hot-Swap NVMe/SATA/SAS drive bays
    Optional 4 x 2.5" inch drives (Rear)
    Internal : 2 x 2280 M.2 (SATA/NVMe) onboard
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED + 1 x Rear UID LED
System Cooling 4 x 8cm heavy duty fan(s)
Security TPM Header
System BIOS BIOS Type: AMI 256MB SPI Flash
Management KVM with dedicated LAN; IPMI 2.0; Redfish API
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • Noise Level: ≥50dbA

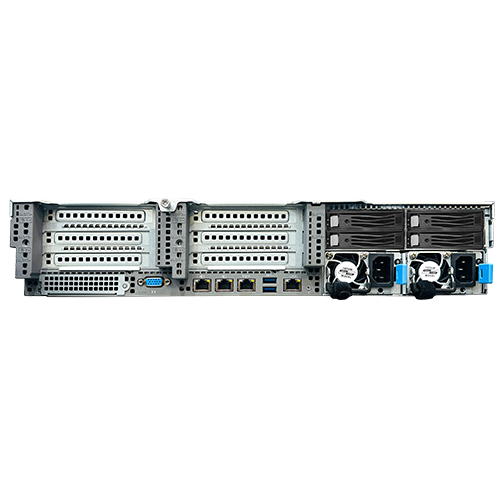

Onboard I/O
  • LAN: 2 x 1G Ethernet Ports, 1 RJ45 Dedicated BMC LAN port
  • USB: 2 USB 3.0 port(s) (2 rear), 2 USB 3.0 port(s) (2 front)
  • Video: 1 VGA port (rear), 1 VGA port (front)
Power Supply
  • 1+1 Redundant CRPS (Platinum/Titanium)
  • 800W/ 1300W/ 1600W/ 2000W/ 2400W/ 2700W
Chassis 2U Chassis
Dimension / Form Factor
  • 2U Rackmount
  • Enclosure: 86mm (H) x 447mm (W) x 815mm (D)
OS Supported Latest Microsoft Windows Server, RHEL, SUSE Linux, Ubuntu, VmWare, HyperV, Oracle Virtualisation, RedHat Virtualisation
System Manual with Management features
